Type S – side-mounted hoist
At a glance
- SWL range 1 t - 10 t.
- Hook positioned beside the crane girder.
- Optimised highest hook position.
- Allows building heights to be reduced.
TYPE S – SIDE-MOUNTED HOIST

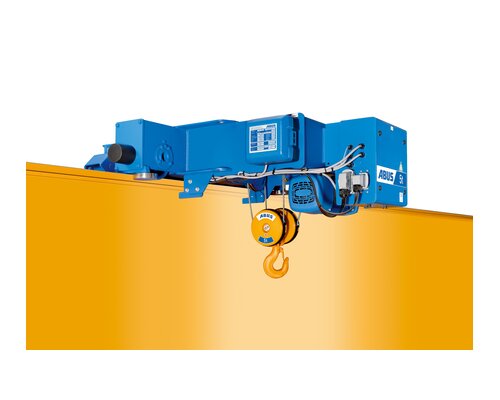

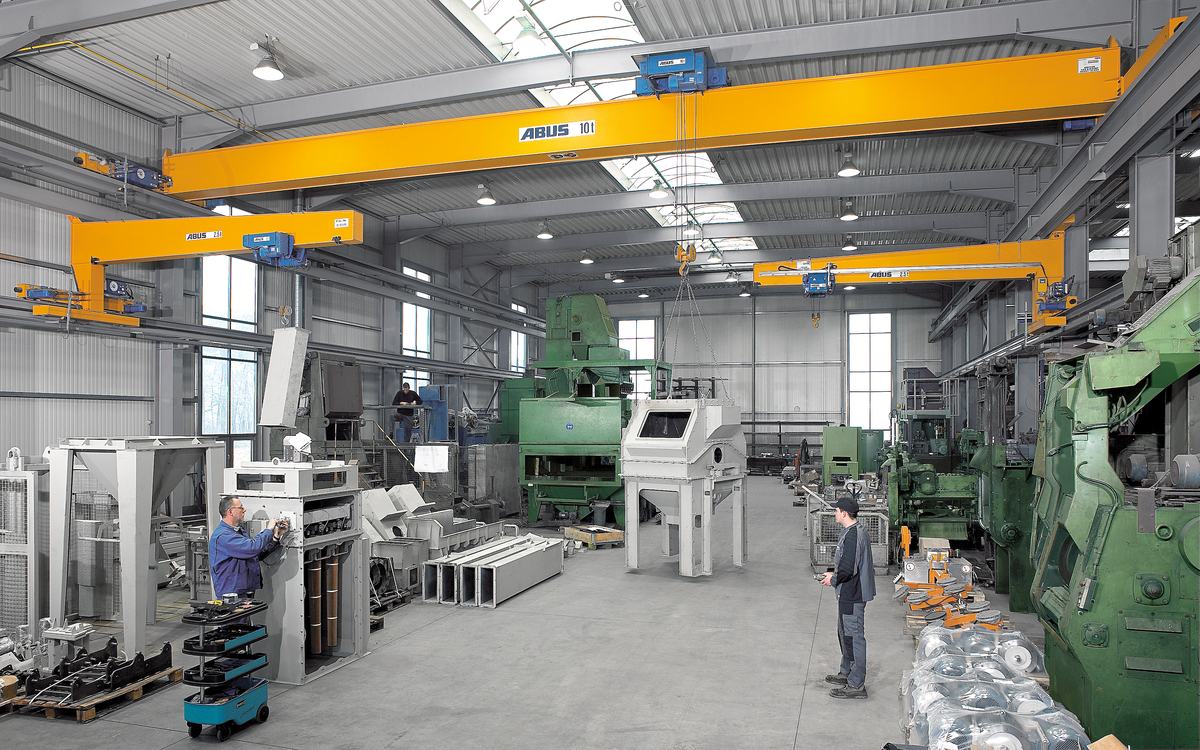

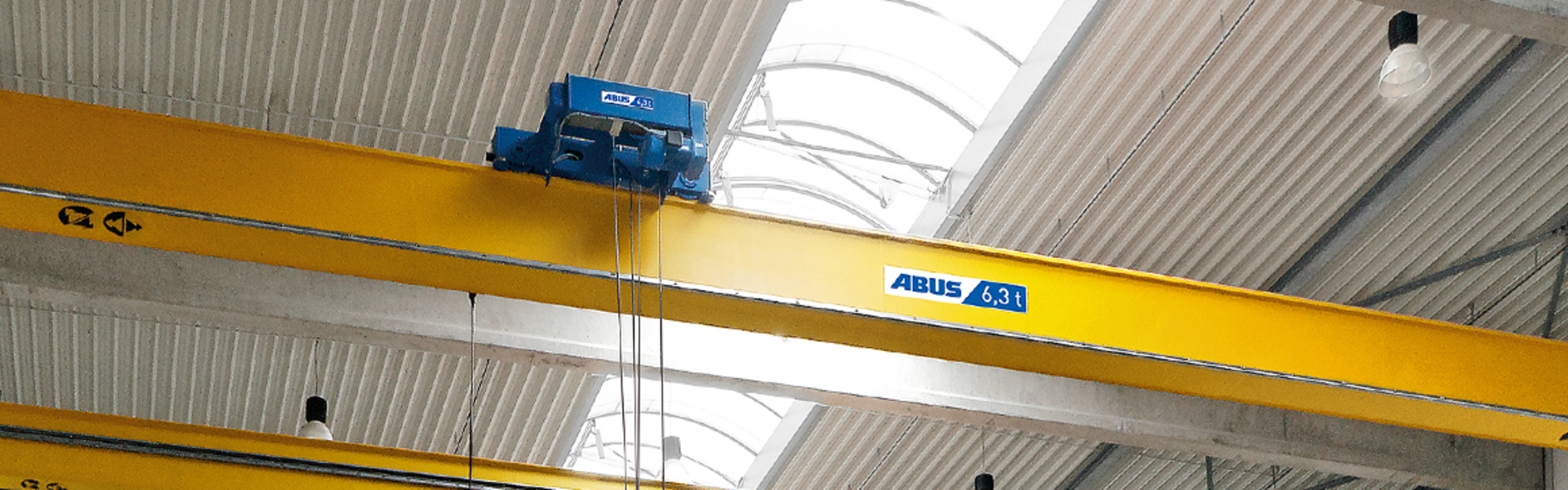

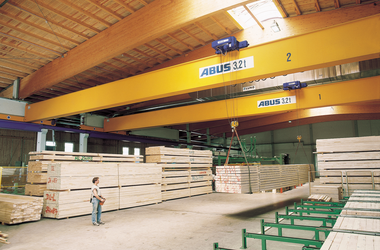

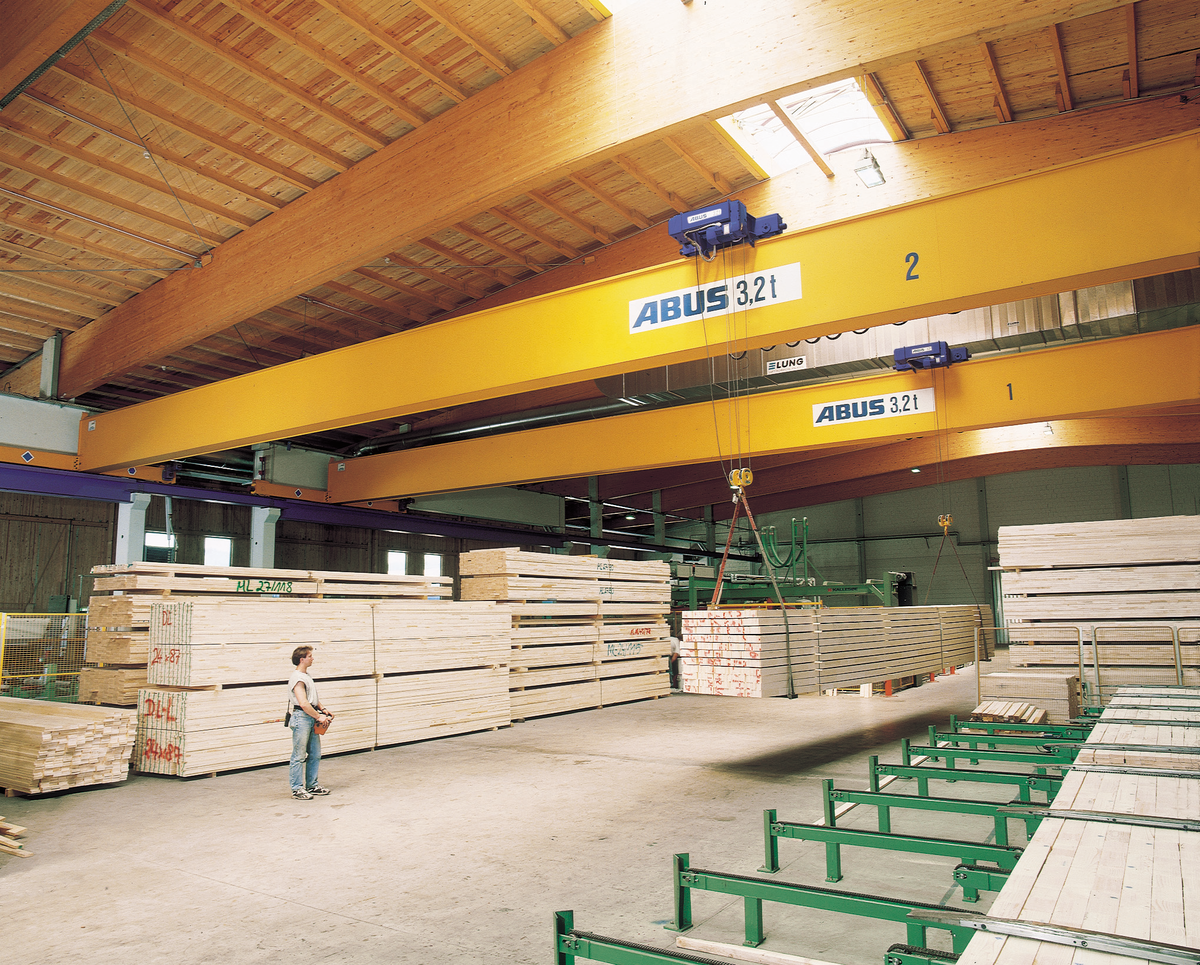

The side-mounted hoist type S is characterised by the hook being positioned beside the crane girder. Thus an optimised highest hook position is achieved in the SWL range of 1 t to 10 t. The optimised hook position is not only an advantage in existing buildings. When designing new factory buildings the side-mounted hoist type S can be employed to reduce the total investment costs: it is possible, for example, to design cranes with spans of up to 35 metres or more as single girder cranes. Compared with a single-girder crane using a monorail hoist type E the building height can be reduced which will result in a lower cost volume. Compared with a double-girder crane of about the same height, the loads on the crane track and the building are significantly lower which is often another cost advantage.

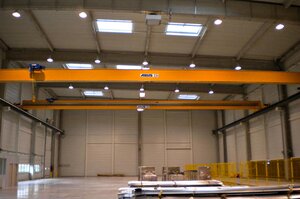

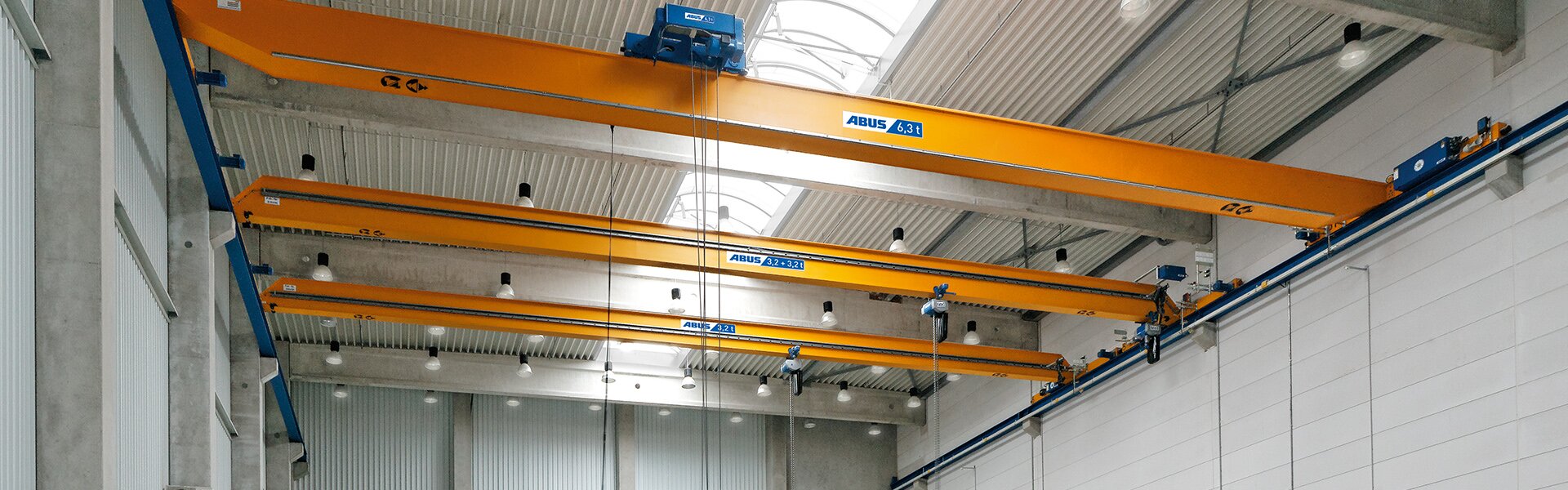

ABUS GM WIRE ROPE HOISTS
FOR SINGLE-GIRDER CRANES

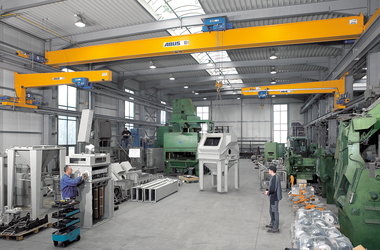

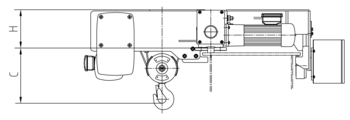

| Model | Reeving | Load cap. (t) | Hook path (m) | C (mm) | H (mm) |
|---|---|---|---|---|---|
| GM 800 | 4/1 | 3,2 | 6 / 9 / - | 343 | 250 |
| GM 1000 | 4/1 | 5,0 | 6 / 9 / - | 420 | 290 |
| GM 2000 | 4/1 | 6,3 | 6/ 9 / - | 440 | 290 |
| GM 3000 | 2/1 | 5,0 | 12 / 20 / - | 700 | 290 |
| 4/1 | 10,0 | 6 / 10 / 15 | 555 | 360 |
