Lightweight mobile gantry

At a glance

With our lightweight mobile gantry (LPK) you can easily lift loads of up to 2 t. The ABUS LPK can be moved easily and is therefore always available wherever you need it, quickly and efficiently.

Load capacity (SWL) up to 2000 kg
Total height up to 5000 mm
Total width in accordance with load capacity (SWL):

Load capacity (SWL)	max. total width
250 kg 500 kg 800 kg 1000 kg 1250 kg 1600 kg 2000 kg	7900 mm 7000 mm 6500 mm 6300 mm 5650 mm 5000 mm 4000 mm

Interested in this product?
Then request now for an offer!

Price enquiry

The ABUS lightweight mobile gantry: Strong performance and high mobility

A lightweight mobile gantry promises maximum performance whenever you need it. The flexibility and mobility of the ABUS mobile gantries are their greatest advantage. They are generally used whenever occasional lifting of loads is necessary, the crane performance is needed at multiple workplaces or the installation of a slewing jib crane or overhead travelling crane would not be a practical solution.

The mobile gantry promises you maximum performance without limiting the rest of your indoor operations. It is easy to move and, thanks to its practical design, can easily travel over workplaces. During design you can specify the height and width of the gantry, this means the lightweight mobile gantry perfectly meets your individual requirements.

We manufacture your lightweight mobile gantry in height and width according to your individual requirements. The maximum width (maximum beam lengths) is 7900 mm (depending on the load capacity), the maximum height is 5000 mm and the maximum load capacity is 2000 kg.

Our lightweight mobile gantry is always quickly on hand

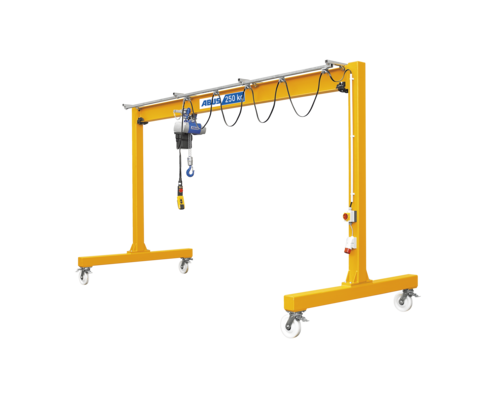

The ABUS lightweight mobile gantry is equipped with four steerable wheels and two 90° direction locks (with wheel stop and swivel stop) as standard. This makes it possible for just one person to push the LPK to its workplace by hand. The wheels have a diameter of 200 mm and are made of high-strength polyamide.

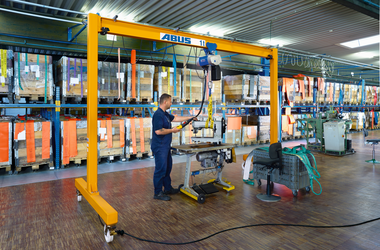

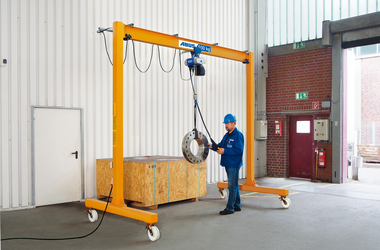

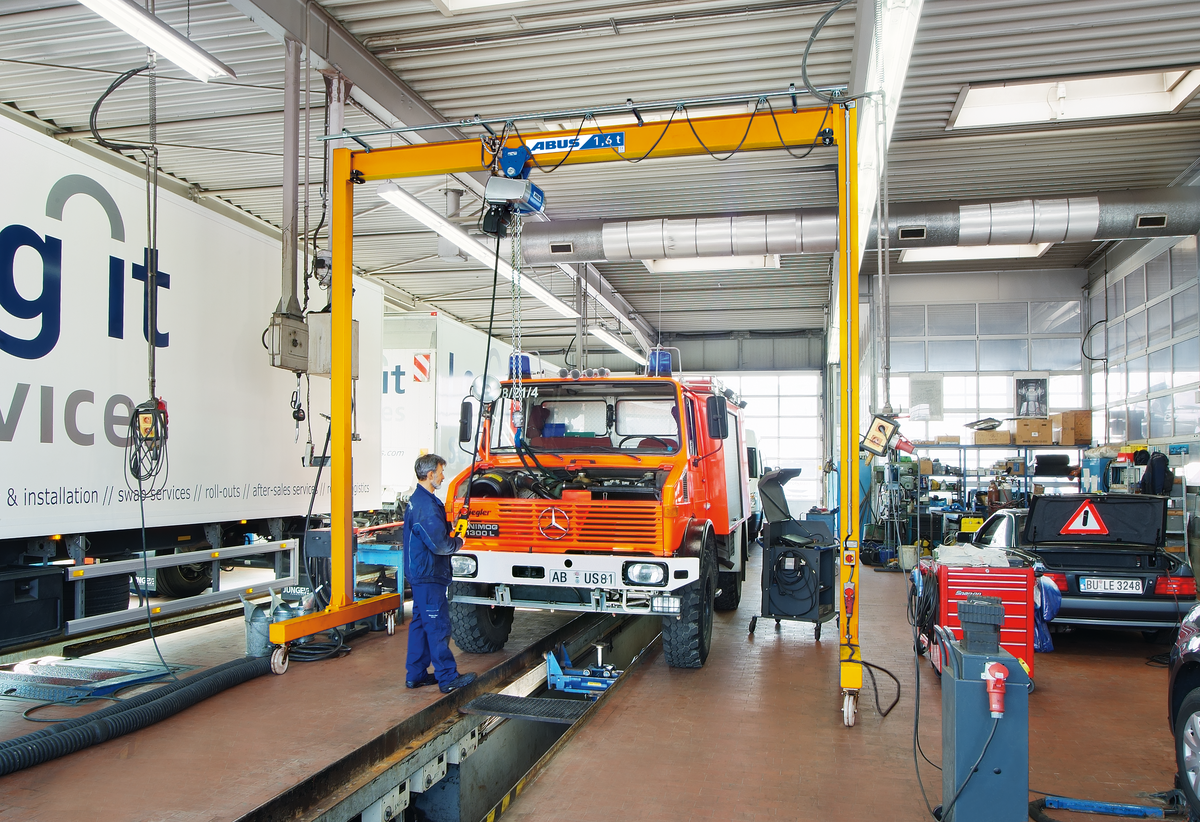

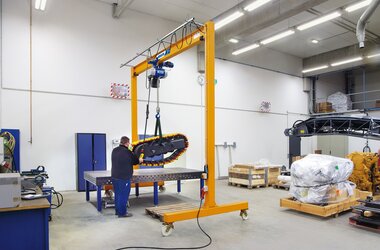

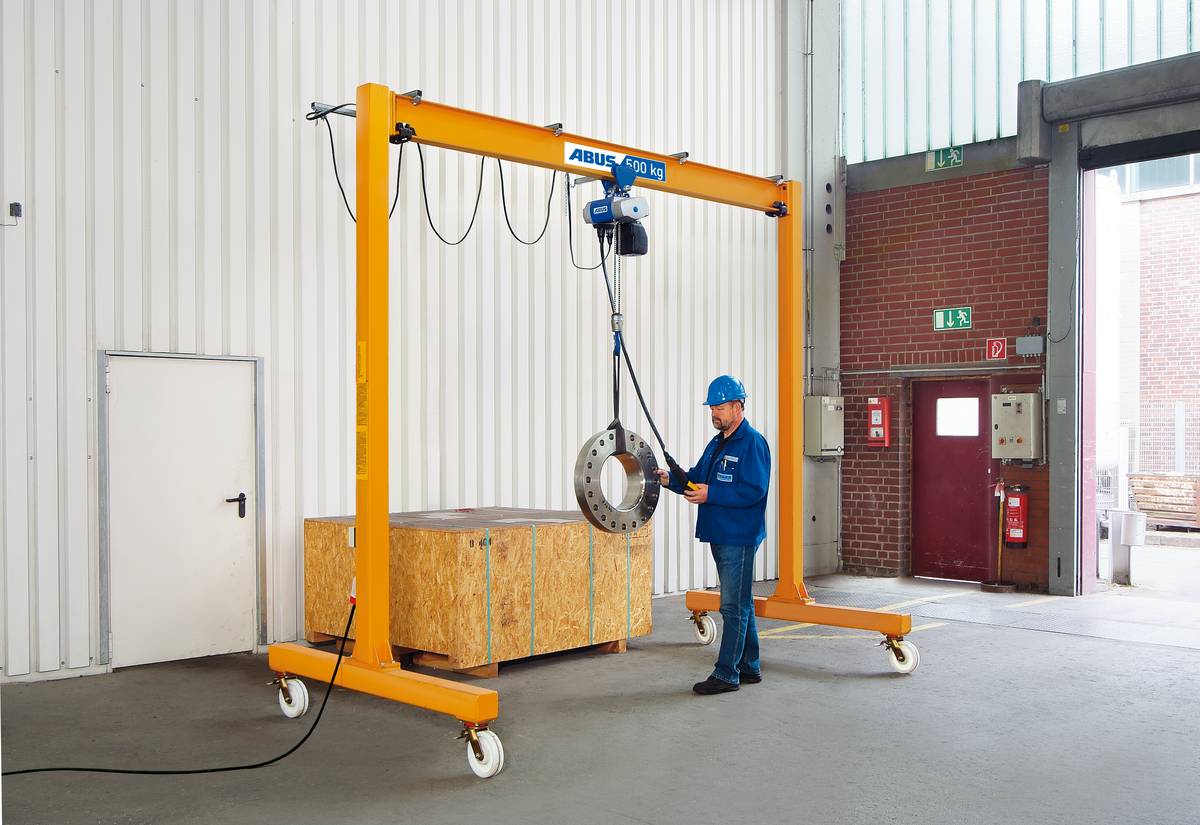

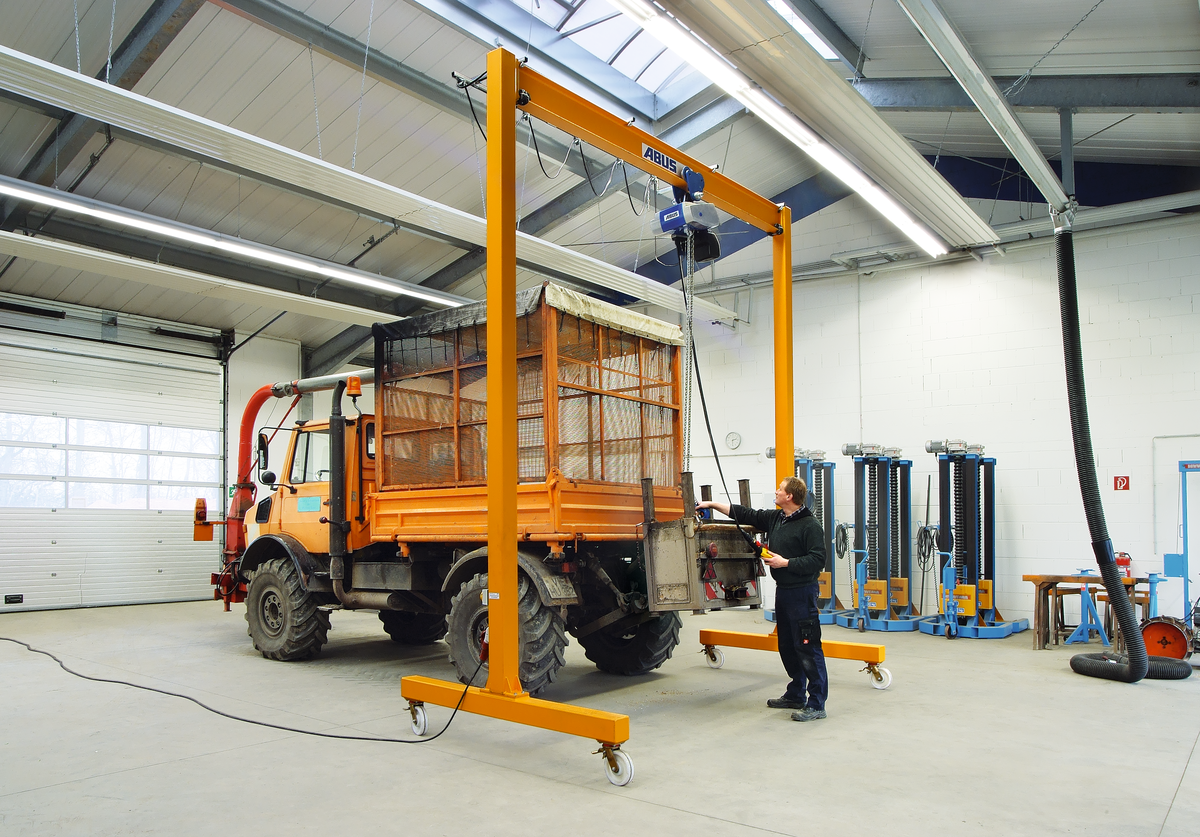

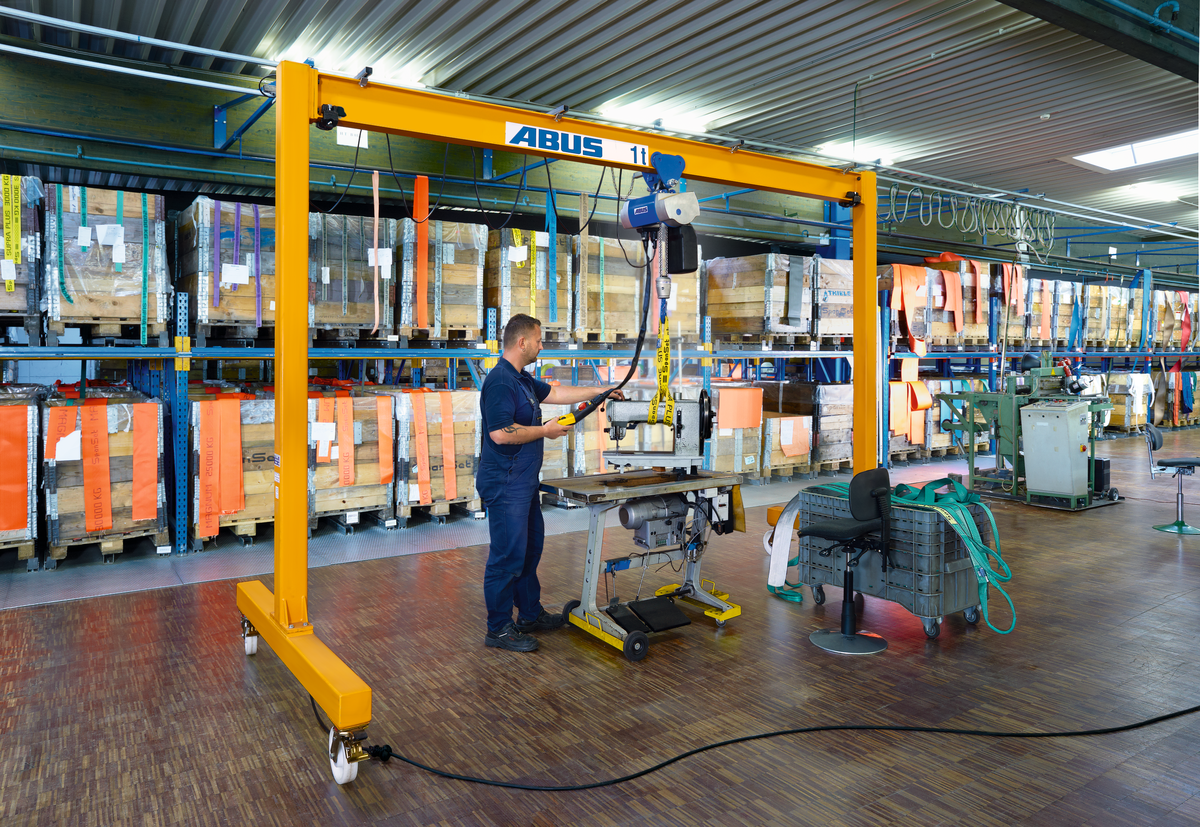

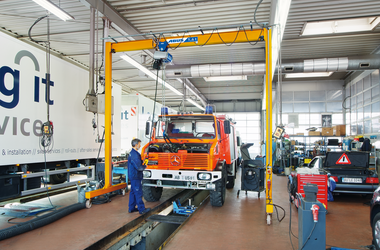

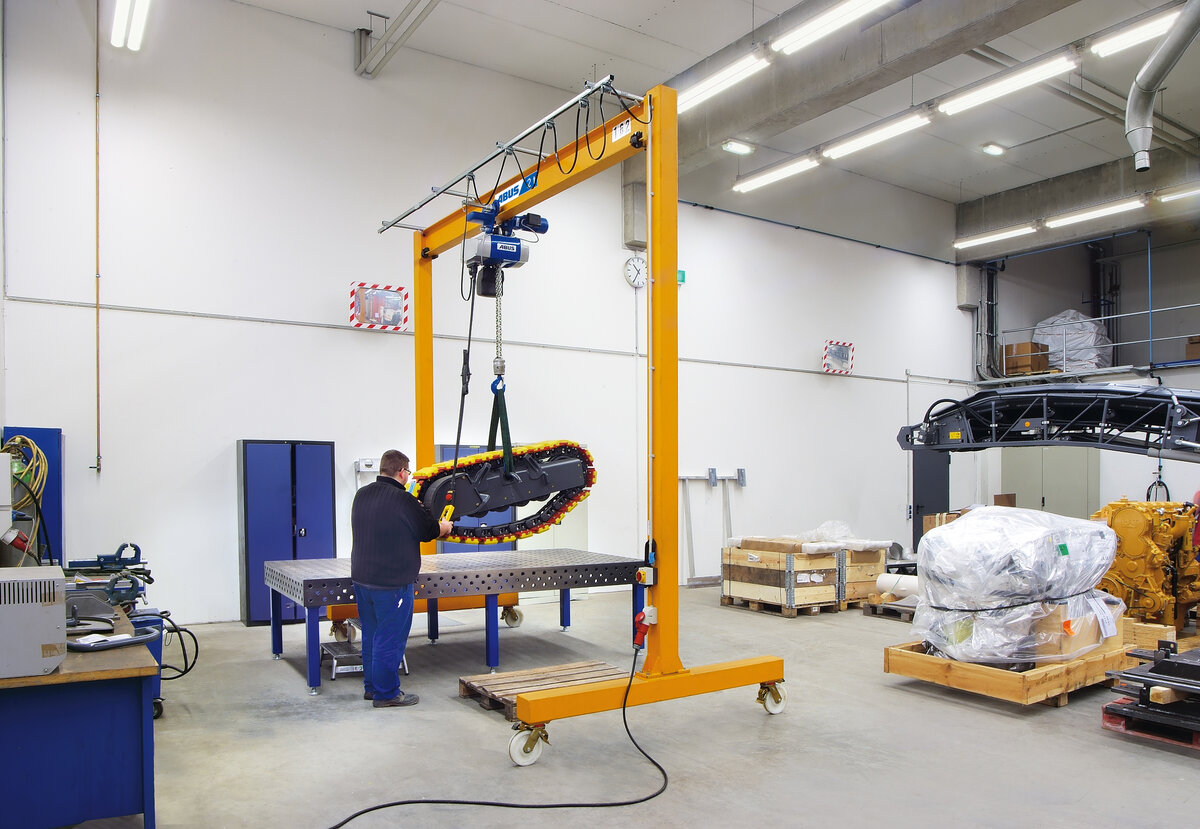

Lightweight mobile gantries can be used for a wide range of applications. Whether it is used for repair work, as a workshop crane, for changing moulds on plastic injection moulding machines or in storage technology - this mobile gantry crane is quickly on hand anywhere it is needed. Our ABUS LPK is not only mobile, but also particularly stable and powerful thanks to its solid section main beam.

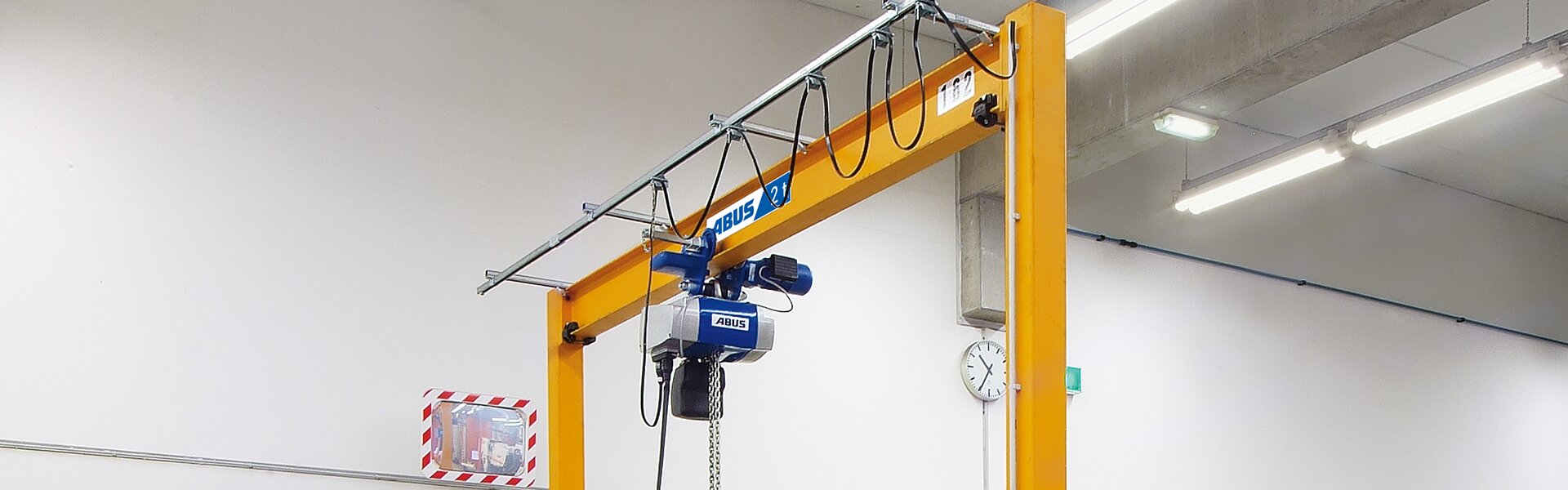

The lightweight gantry cranes are equipped with our tried and tested ABUS hoist, of which thousands of units are currently in use in the market: Our electric chain hoist is available with either a manual or an electric trolley and can have the power supply as either a festoon cable or a conductor system.

Lightweight mobile gantry from ABUS Crane Systems

For many years, we have been one of the leading manufacturers of crane systems and components. In addition to modern, high-quality cranes and hoists, ABUS offers you professional services. We are happy to offer installation, testing and commissioning and then later on the maintenance and repair of your crane systems.

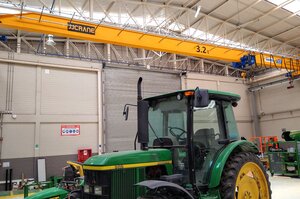

Additionally, we offer you further crane technology and hoists, such as a wall-mounted jib cranes with a load capacity of up to 5 t or floor mounted pillar jib cranes with a load capacity of up to 6.3 t and a jib length of up to 10 m (depending on the load capacity) or alternatively overhead travelling cranes of up to 120 t.

Simply arrange a non-binding consultation. The responsible ABUS contact person will be glad to advise you on your options for using a lightweight mobile gantry.

Downloads

ABUS LPK mobile gantry Flyer

Download PDF (290.31 KB)

ABUS Electric chain hoists (ABUCompact)

Download PDF (3.54 MB)

FAQ

It's basically a mobile lifting device that's been specially developed to make handling goods in intralogistics more efficient. It's a great, cost-effective solution for anyone who needs a versatile lifting system. It's easy to handle and mobile, which is great. It's got four lockable wheels, so you can move it around easily to wherever you need it. It can also be put together and taken apart really quickly, making it perfect for setting up temporary workstations. It can take loads of up to 2000 kg and is around 5 m high, with a width of up to 7900 mm.

It's a pretty straightforward piece of kit: you just lift the load using gear like a chain hoist and position it along the beam. This makes it great for handling all kinds of materials in different environments, like workshops, repair shops, and production areas. It's lightweight but sturdy, so it's reliable and you don't need to fix it to the ceiling or the floor. Our product advisors can easily assess whether a mobile gantry crane is the best solution for your task.

Light gantry cranes are a flexible and efficient solution for intralogistics, which is the internal transport of materials. They're way more mobile than regular cranes, so you can move them around easily and use them in different places. This means you can move loads around easily without needing to set up a crane track or do complicated installations.

They're also dead easy to operate, since they've got a low dead weight, so you can get one person to run them. They've got loads of capacity and they're really stable, all thanks to the top-notch materials and solid construction. This makes them perfect for all sorts of jobs, from workshops to production halls, and for repair work too.

They're also great value for money as they don't need any permanent structural changes and can be easily adapted to growing demands. With an ABUS mobile gantry crane, you get a combo of mobility, efficiency and durability. Let us give you some good advice.

A user-friendly gantry crane is designed to be easily transportable and quick to assemble. It is usually transported on a trailer or a vehicle, as the crane is delivered in individual parts or modified components that are easy to handle. The individual parts are designed to be not very heavy, which makes them easier to transport. Depending on the size of the crane, it can be stored either on pallets or in special transport crates.

Setting up a mobile gantry crane is usually straightforward and takes little time. The main components, such as the crane frame and beams, are set up at their destination. These are modular components that can be connected to each other using simple tools. The four lockable wheels are mounted so that the crane can be pushed to the desired position. Once the crane is in place, the wheels are locked to ensure a secure stand.

This process requires no special knowledge and can easily be done by one person. This means that the mobile gantry crane is ready for use in no time and is particularly suitable for temporary use and changing work locations. A product consultant can give you the exact dimensions and weights.

Basically, anywhere where you need a flexible and mobile lifting system for intralogistics. They're a real game-changer in workshops, where they can safely lift and move heavy stuff like machine parts and tools, making it easy to move them around to different workstations. In production areas, they make it super quick to move materials and components around between workstations, so you don't need to mess around with setting up a fixed crane. They're also great for repair and maintenance work, as they can be moved around easily to handle loads in different places.

In warehousing and logistics, they're great for handling goods and order picking, especially in areas without permanent lifting gear. They're also great at temporary workplaces because they can be set up and taken down really quickly and work on their own without needing to be fixed to the ceiling or floor. So they're perfect for trade fairs and events, where they can move stands and event tech around easily. They're great for moving loads safely and accurately, and you can set them up and take them down really quickly. Our regional advisors are on hand to help you find the perfect solution for your needs.
