Type D – standard crab unit

At a glance

SWL range 1 - 63 t.
Articulated end carriage joints.
No hook wander or rotation with true vertical lift units.
Maintenance platform as an option.

Interested in this product?
Then request now for an offer!

Price enquiry

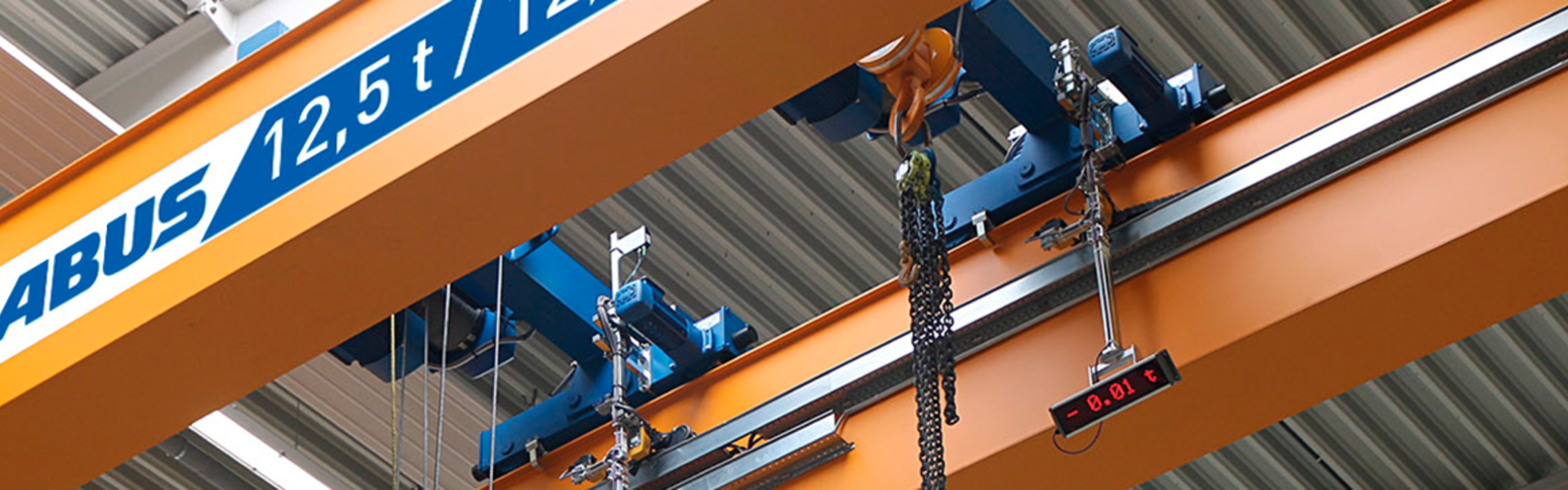

TYPE D – STANDARD CRAB UNIT

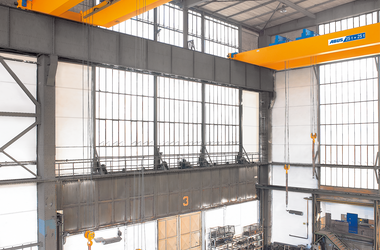

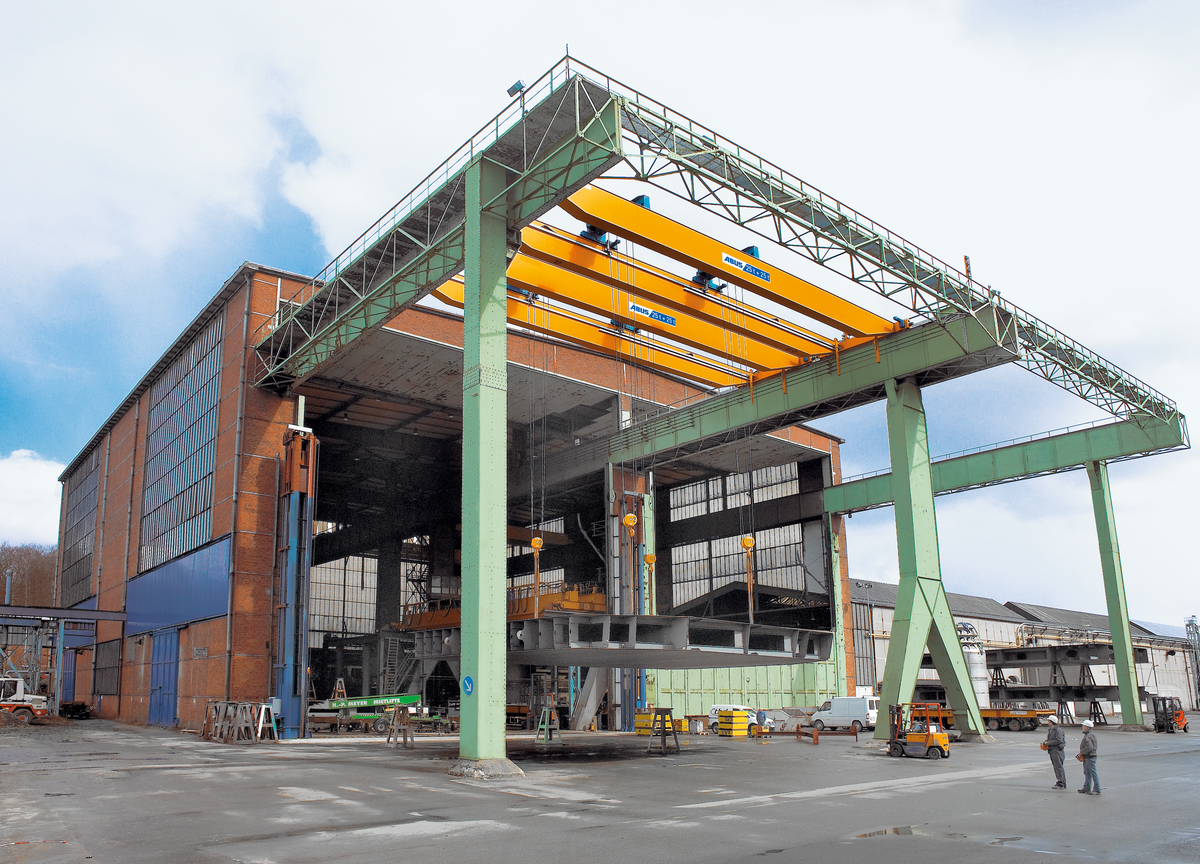

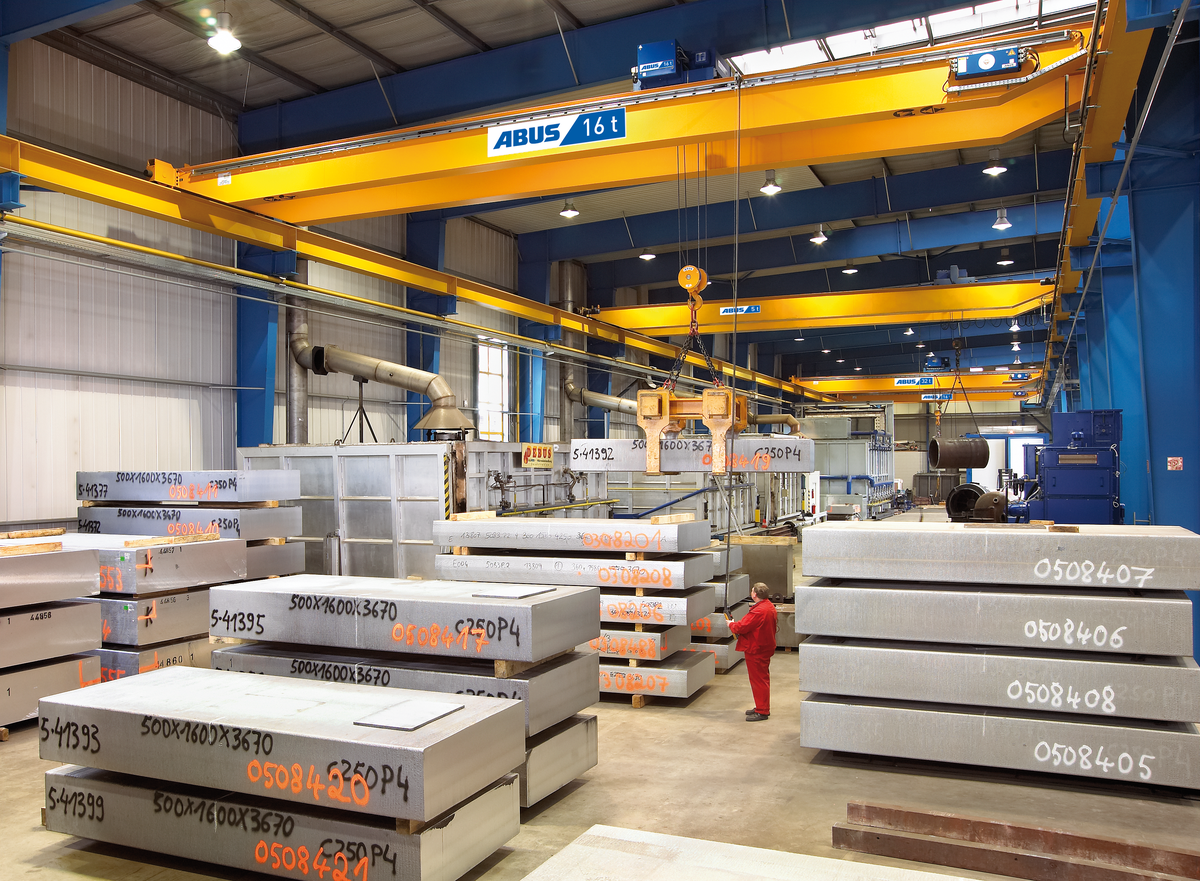

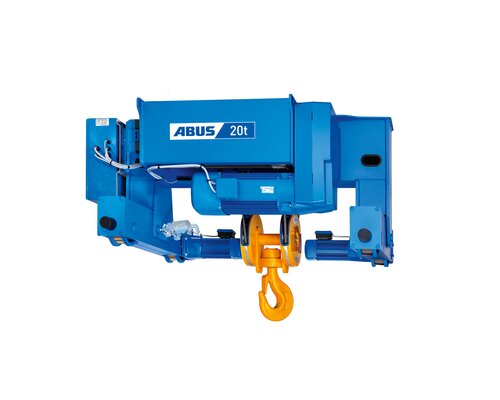

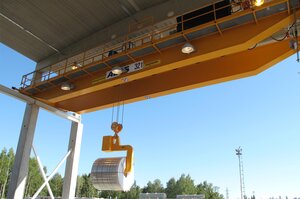

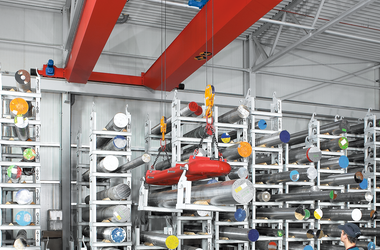

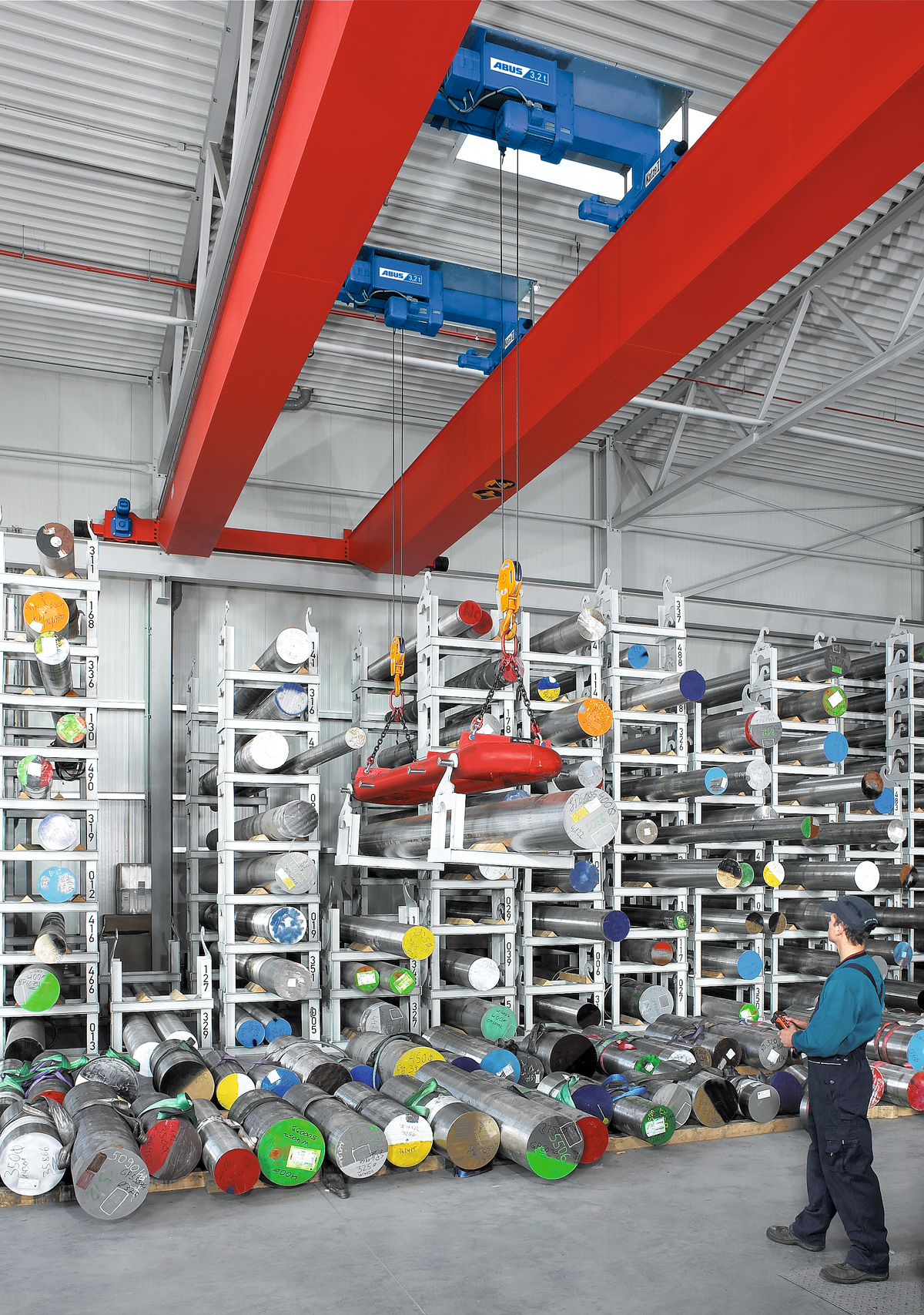

The double rail trolley type D is our compact standard crab unit for the medium SWL applications between 1 t and 63 t. This design is characterised by articulated end carriage joints that ensure positive contact of all four wheels with the track. The hoist trolley of this crab unit features two direct drive cross travel motors. Some D type hoists can be used for so-called true vertical lift applications as hook ‘wander’ (movement along the barrel) and rotation are absent. This is a major advantage for crane users in case of applications that require lifting of guided loads or turning loads with two hoists. In addition, maintenance platforms can be fitted to this crab unit making for easier and safer service and maintenance —with walkable platforms being an option also. Should the available clearance above the crab unit be restricted, a stooled-down version ( type DA ) is available upon request.

RELATED PRODCUTS

Type E – monorail hoist

16 t

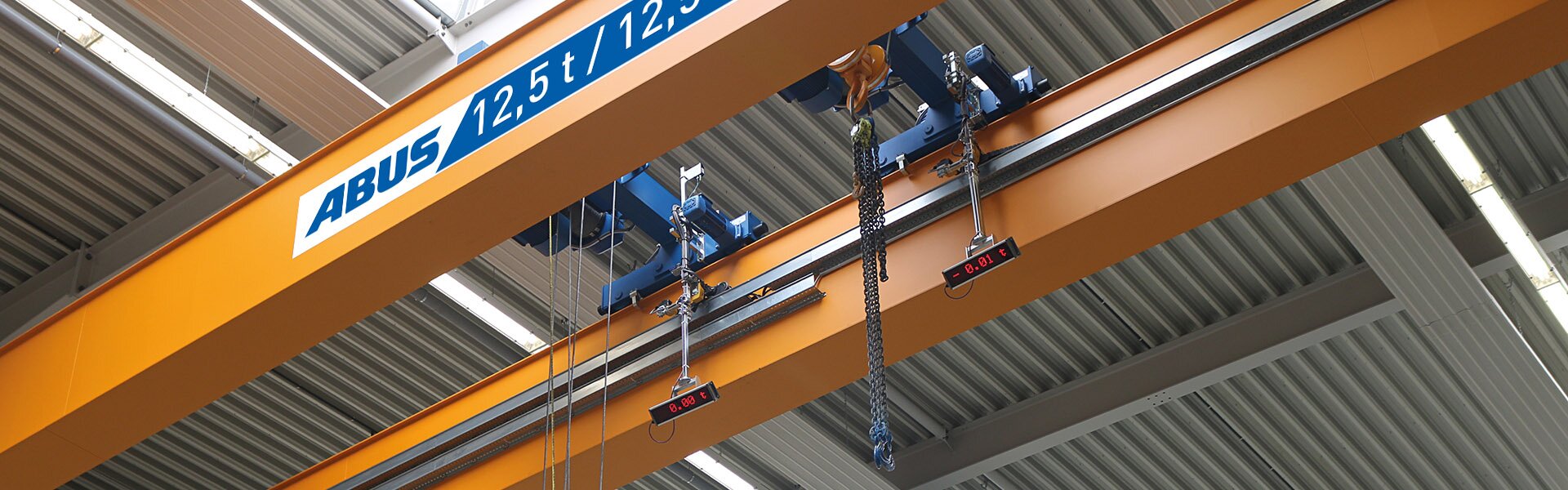

Type U – monorail hoist with twin trolleys

25 t

Type S – side-mounted hoist

10 t

Type DA - low headroom crab unit

40 t

Type DQA – ultra low headroom crab unit

40 t

Type Z – twin barrel crab unit

120 t

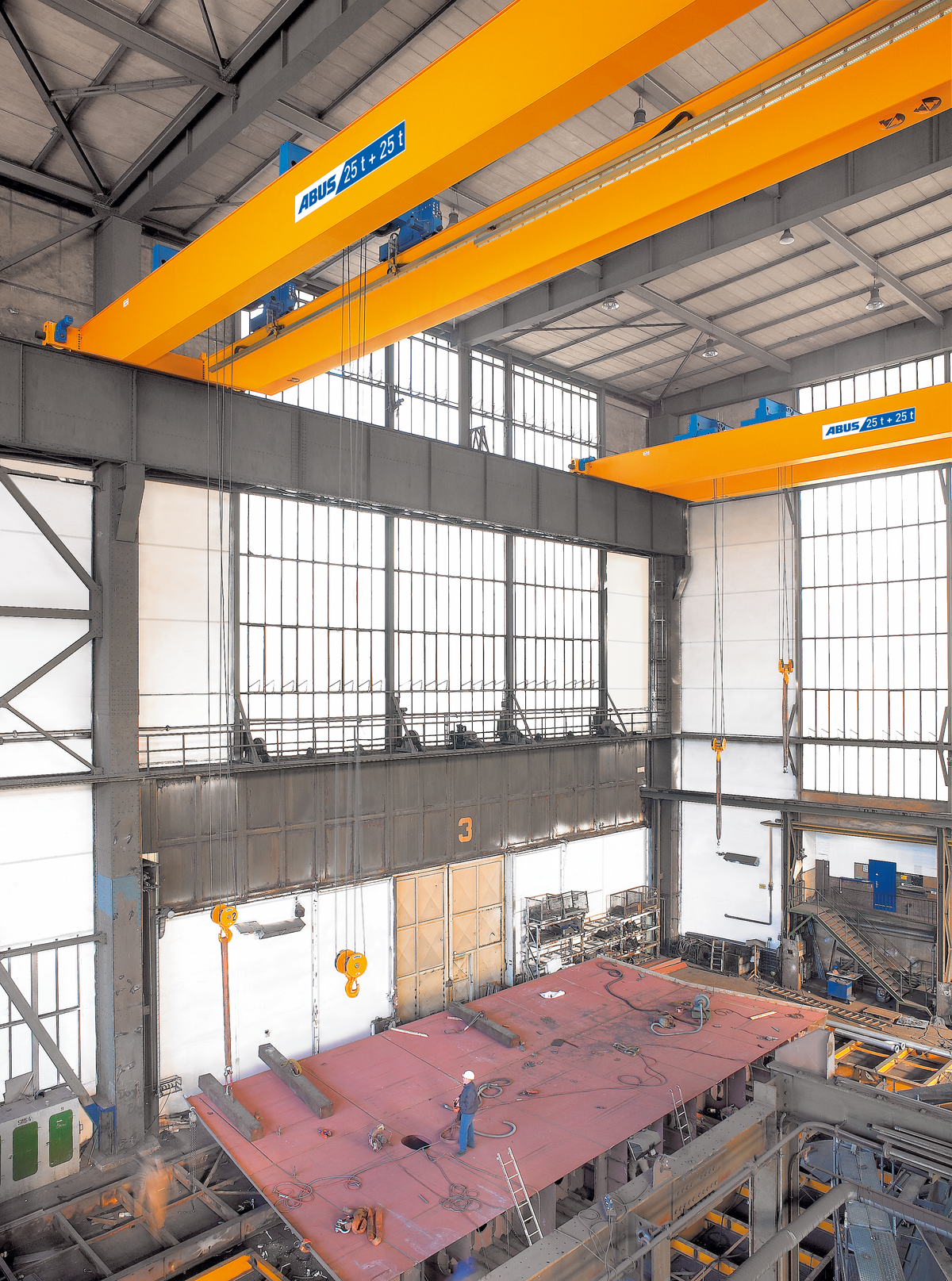

ABUS GM CRAB UNITS FOR
DOUBLE-GIRDER CRANES

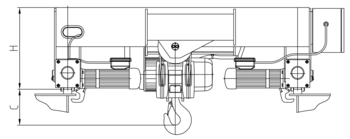

Model	Reeving	Load cap. (t)	Hook path (m)	C (mm)	H (mm)
GM 800	4/1	3,2	6 / 9 / - / -	149	465
GM 1000	4/1	5,0	6 / 9 / 12 / -	200	505
GM 2000	2/1	3,2	12 / 18 / 24 / -	300	505
	4/1	6,3	6 / 9 / 12 / -	220	505
GM 3000	2/1	6,3	12 / 20 / 30 / -	320	565
	4/1	12,5	6 / 10 / 15 / -	260	595
GM 5000	2/1	10,0	12 / 20 / 30 / 37	445	615
	4/1	20,0	6 / 10 / 15 / 18,5	385	720
	4/2	10,0	9 / 15 / 20 / -	320	615
GM 6000	2/1	12,5	12 / 20 / 30 / 37	520	660
	4/1	25,0	6 / 10 / 15 / 18,5	275	900
	6/1	40,0	4 / 6,6 / 10 / 12,3	611	950
GM 7000	2/1	20,0	16 / 30 / 45 / -	572	987
	4/1	40,0	8 / 15 / 22,5 / 27,5	500	995
	4/2	20,0	7,3 / 17 / 27,3 / -	236	987
	6/1	63,0	5,3 / 10 / 15 / -	897	1218
	8/2	40,0	4,2 / 9 / 14,2 / -	521	1020
