Type Z – twin barrel crab unit

At a glance

SWL range 8 t - 120 t.
Compact design.
Articulated end carriage joints.
Two direct drive cross travel motors.

Interested in this product?
Then request now for an offer!

Price enquiry

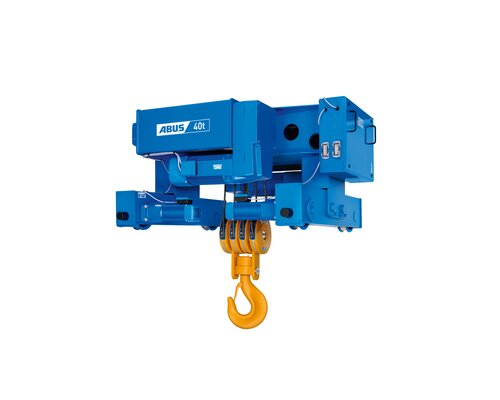

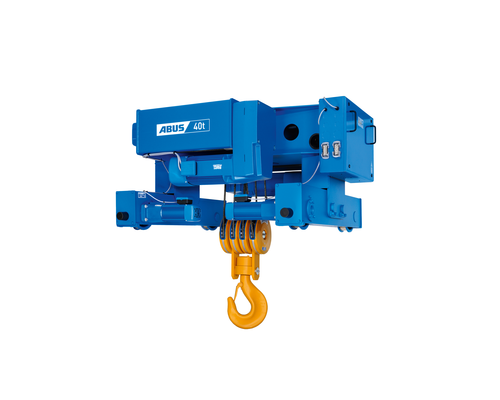

TYPE Z – TWIN BARREL CRAB UNIT

The twin barrel crab unit type Z is our standard wire rope hoist for heavy duty transport applications. The Safe Working Load range for type Z is between 8 t and 120 t. The articulated end carriage joints ensure positive contact of all four wheels with the track. The hoist trolley of this twin barrel crab unit features two direct drive cross travel motors. These come as epicyclic or flat geared motors depending on the diameter of the wheels. In addition, maintenance platforms can be fitted to this crab unit making for easier and safer service and maintenance - with walkable platforms being an option also. Should the available clearance above the crab unit be restricted, a stooled-down version (type ZA) is available upon request, a design characterised by ultra-low headroom that adapts to the building contours in an optimal way.

RELATED PRODCUTS

Type E – monorail hoist

16 t

Type U – monorail hoist with twin trolleys

25 t

Type S – side-mounted hoist

10 t

Type D – standard crab unit

63 t

Type DA - low headroom crab unit

40 t

Type DQA – ultra low headroom crab unit

40 t

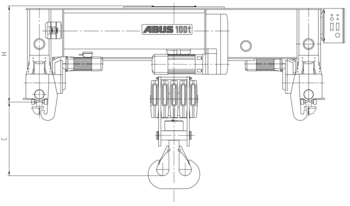

ABUS GM CRAB UNITS FOR
DOUBLE-GIRDER CRANES

Model	Reeving	Load cap. (t)	Hook path (m)	C (mm)	H (mm)
	8/2	40,0	6 / 10 / 15 / 18,5	635	1060
GM 6000	4/2	25,0	12 / 20 / 30 / 37	419	1035
	8/2	50,0	6 / 10 / 15 / 18,5	643	1105
GM 7000	4/2	40,0	16 / 30 / 45 / -	668	1220
	6/2	63,0	10,6 / 20 / 30 / 36	897	1218
	8/2	80,0	8 / 15 / 22,5 / 27,5	915	1275
	10/2	100,0	12 / 18 / 22 / -	960	1265
	12/2	120,0	15 / 18 / - / -	1400	1200
