End Carriages & Wheel blocks

End Carriages & Wheel blocks
Interested in this product? Then request now for an offer!

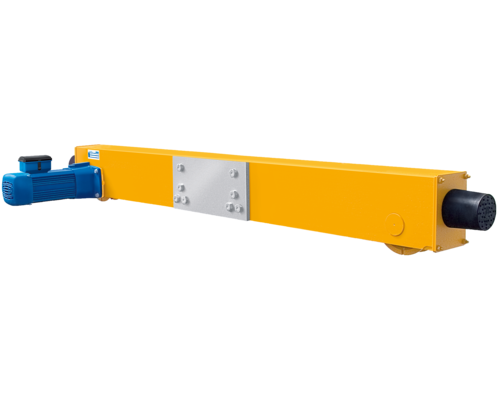

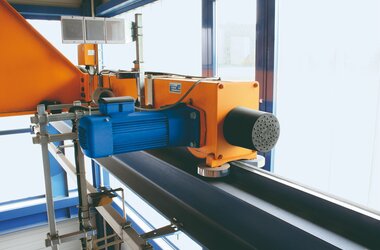

Steel structure in accordance with DIN 15018. As all the machining is performed in one jig, the structure has a high degree of mechanical precision.

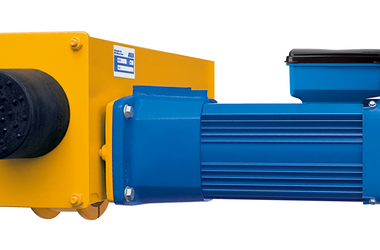

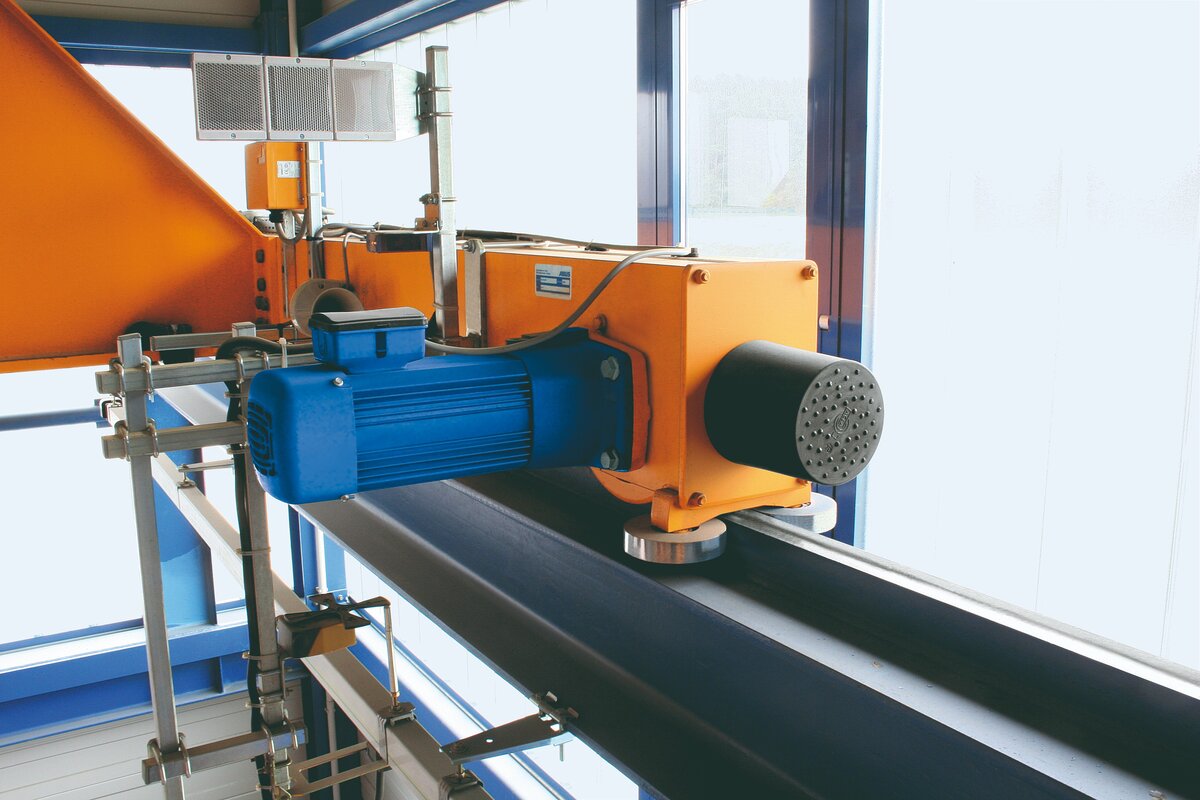

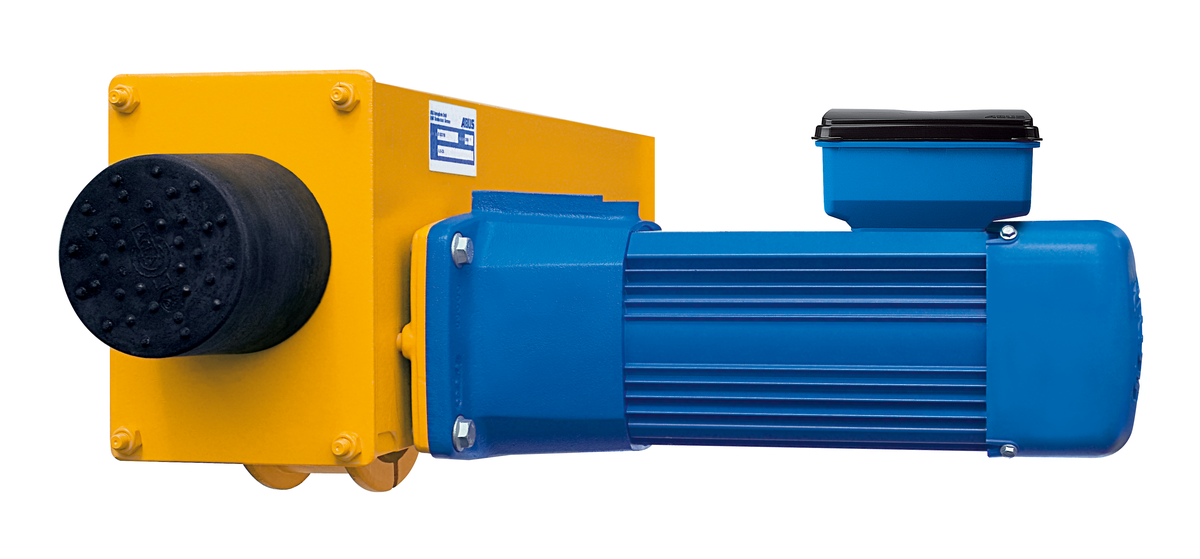

Connected to main girders by high-strength bolts. Wheels with roller bearings and permanent lubrication. Motor with smooth starting and stopping characteristics. With integrated DC power supply for sturdy, durable electro-mechanical disc brake. Motor entirely maintenance-free. Steel structure with single-layer painting RAL 1007 (daffodil yellow), motors painted traffic blue, RAL 5017.

Main features:

  • High dimensional precision
  • Smooth starting
  • Smooth switching
  • Smooth braking
  • Maintenance-free motors
  • Wheel flange guide
  • Ultrasonically tested main girder connection plates
  • Sturdy design
  • Complete standard equipment
  • Plug-in connector for electrical connections with brake recifier fitted in

Scope of supply:

Steel structure with built-in wheels, buffers and buffer plates, connection plates with high-strength connection to main girder, geared brake motor with plug-in connector and built-in braking rectifier.
