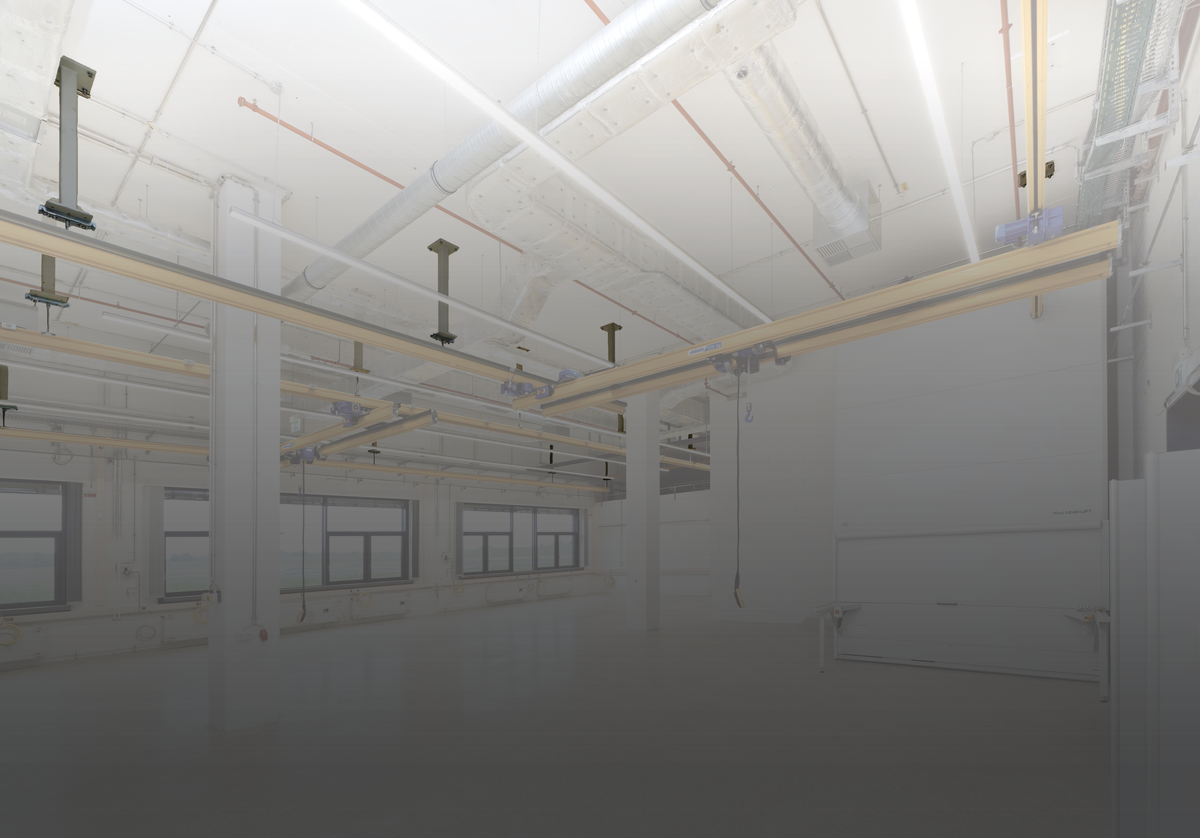

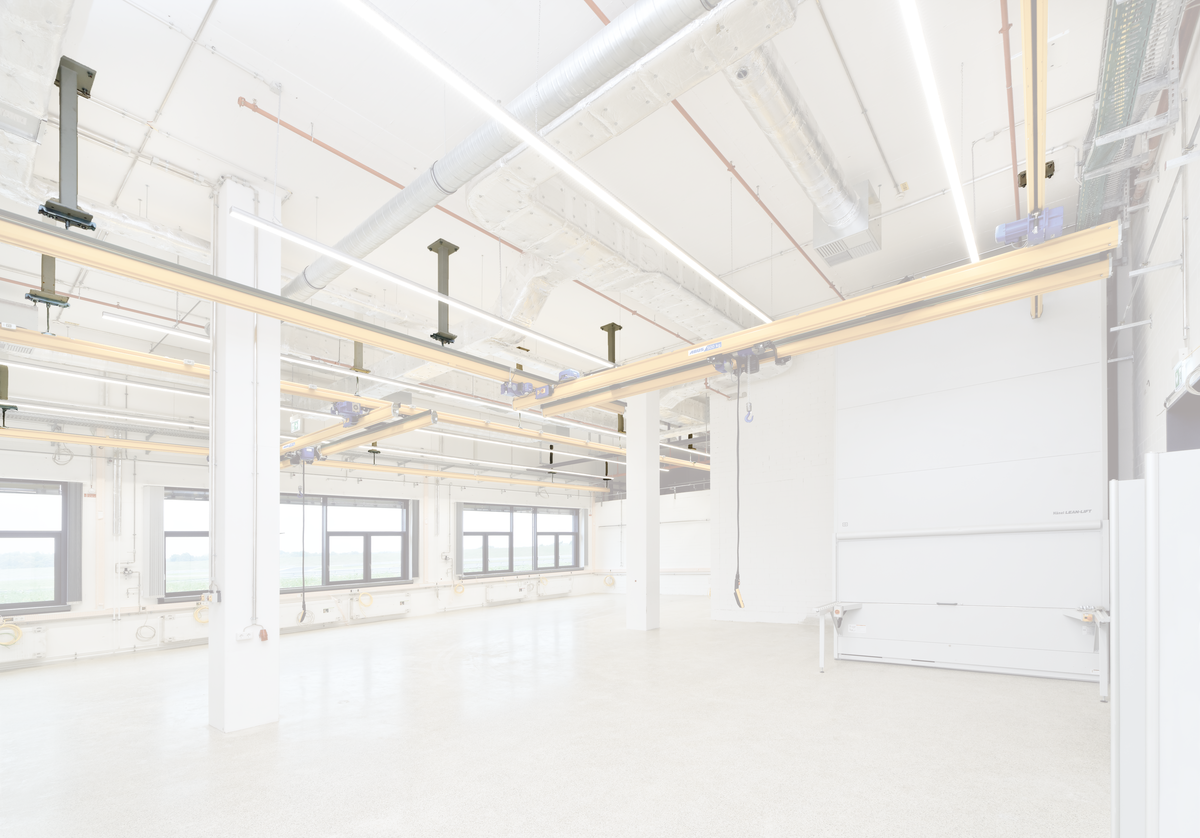

Mounting on a reinforced steel ceiling using profile suspension extension
Do you have a reinforced concrete ceiling and have to hang the suspended crane installation from the ceiling because of ventilation ducts, for example?

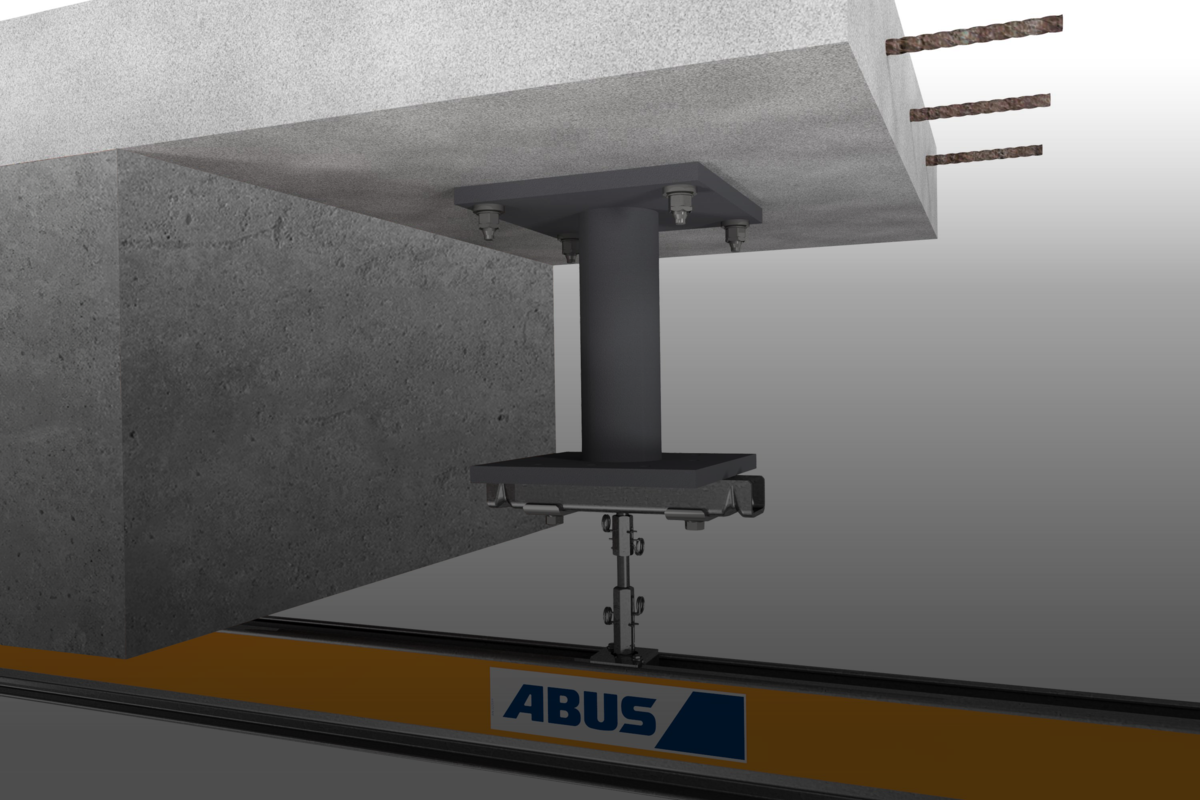

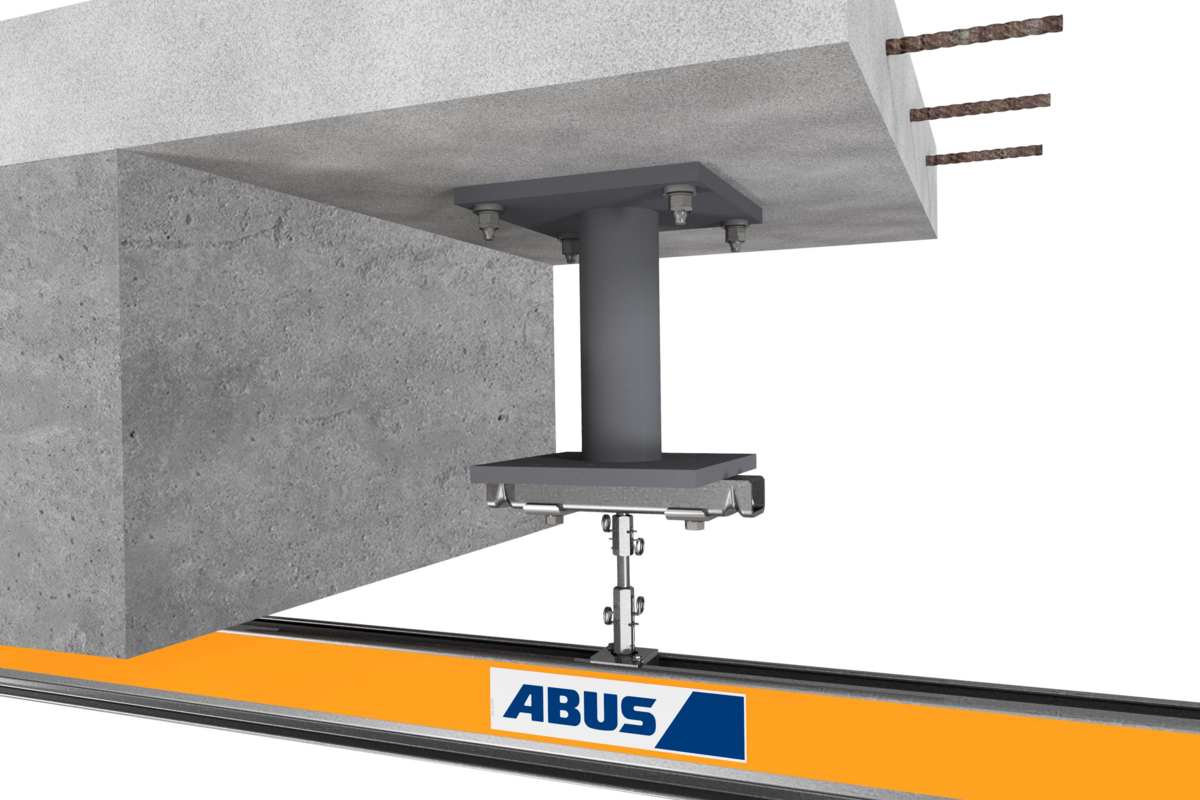

Then this is when profile suspension extensions are used. The suspension height can be up to 2000 mm. The profile suspension extensions are attached to the ceiling using dowels authorized for use with dynamic loads.
A profile suspension can also be an alternative to a suspension with very long threaded rods. The pendulum movement is significantly reduced and additional stiffeners to counter it are thus no longer required.
