Wire rope hoists

Type DQA – ultra low headroom crab unit

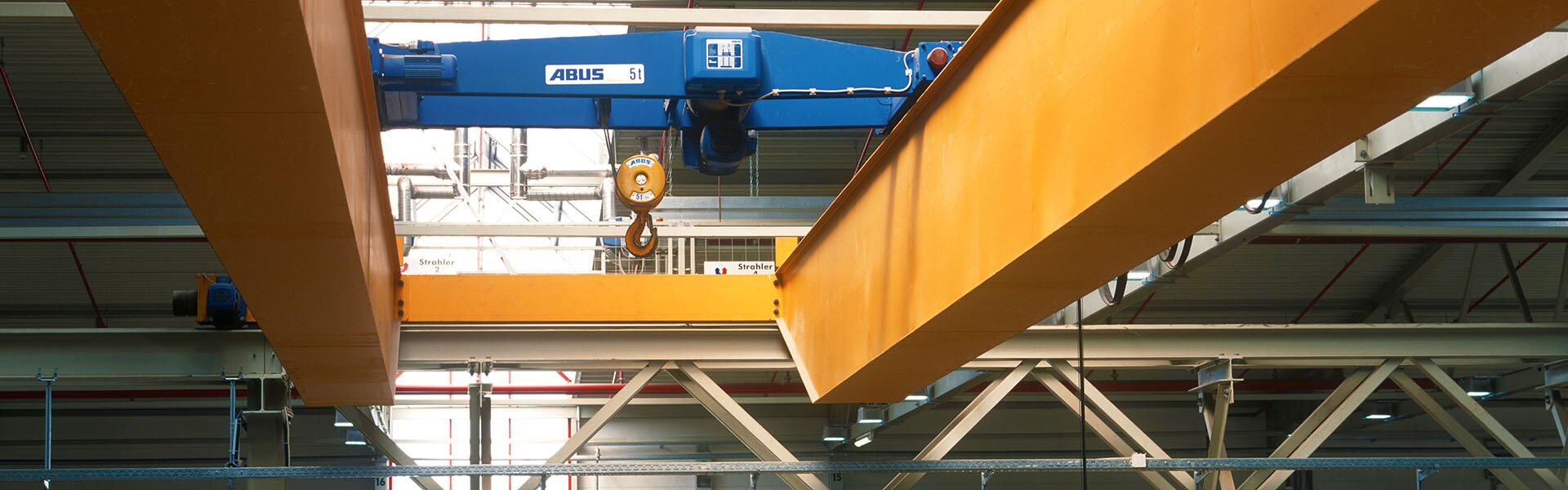

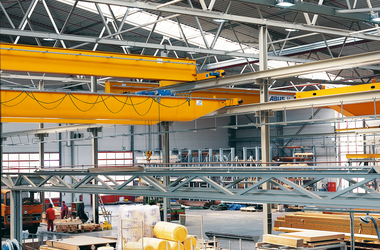

ABUS double rail trolley type DQA on ABUS overhead travelling crane in the company Bienhaus in Schlüchtern

At a glance

  • SWL range 1 t - 40 t.
  • Ultra low headroom design.
  • Articulated end carriage joints.
  • Two direct drive cross travel motors.

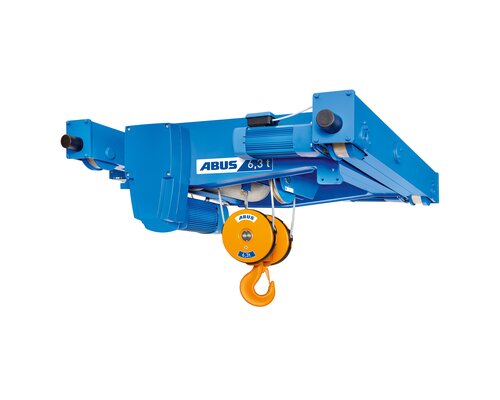

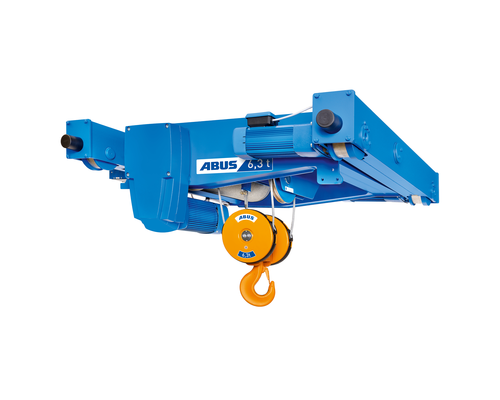

Figure ABUS double rail trolley type DQA
Interested in this product?
Then request now for an offer!
Price enquiry

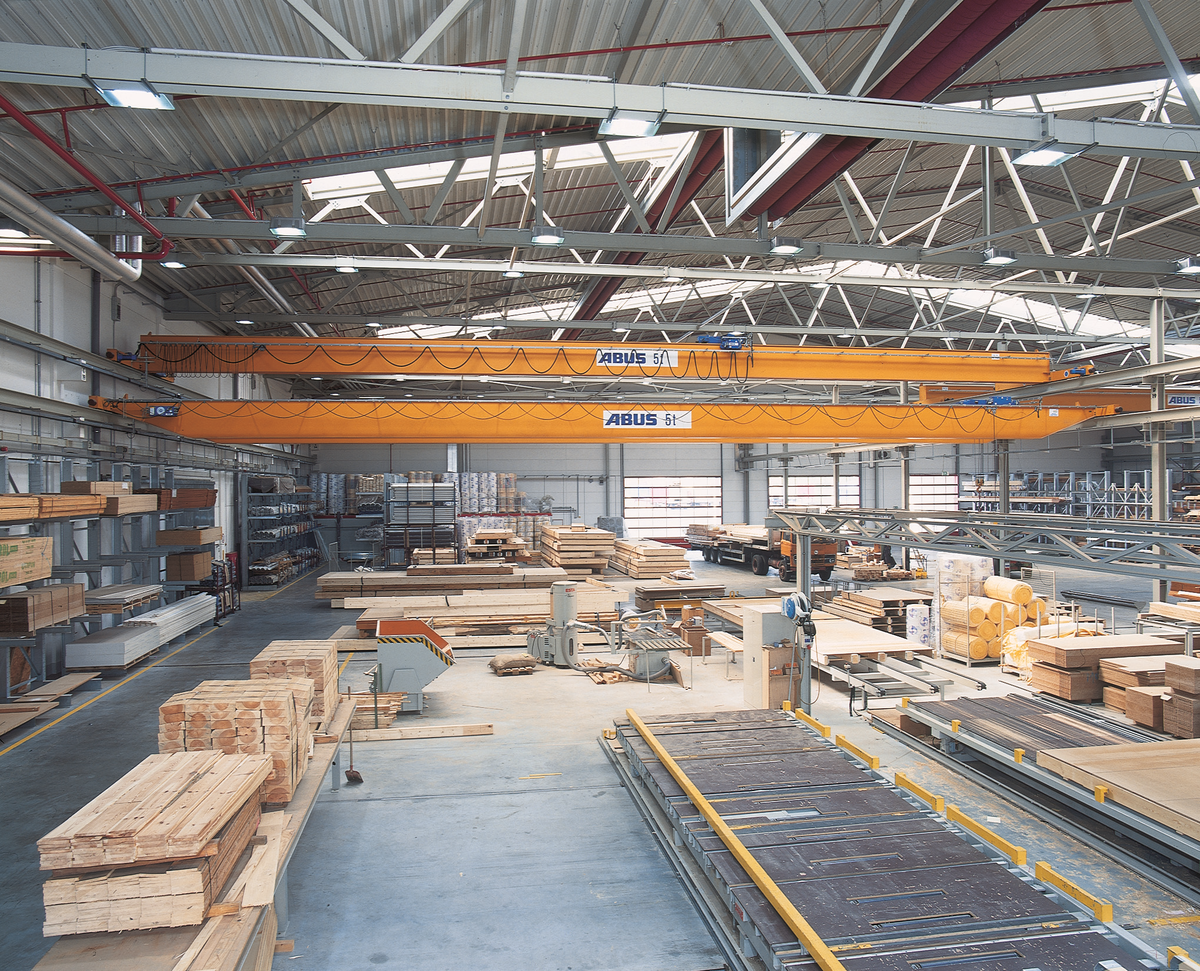

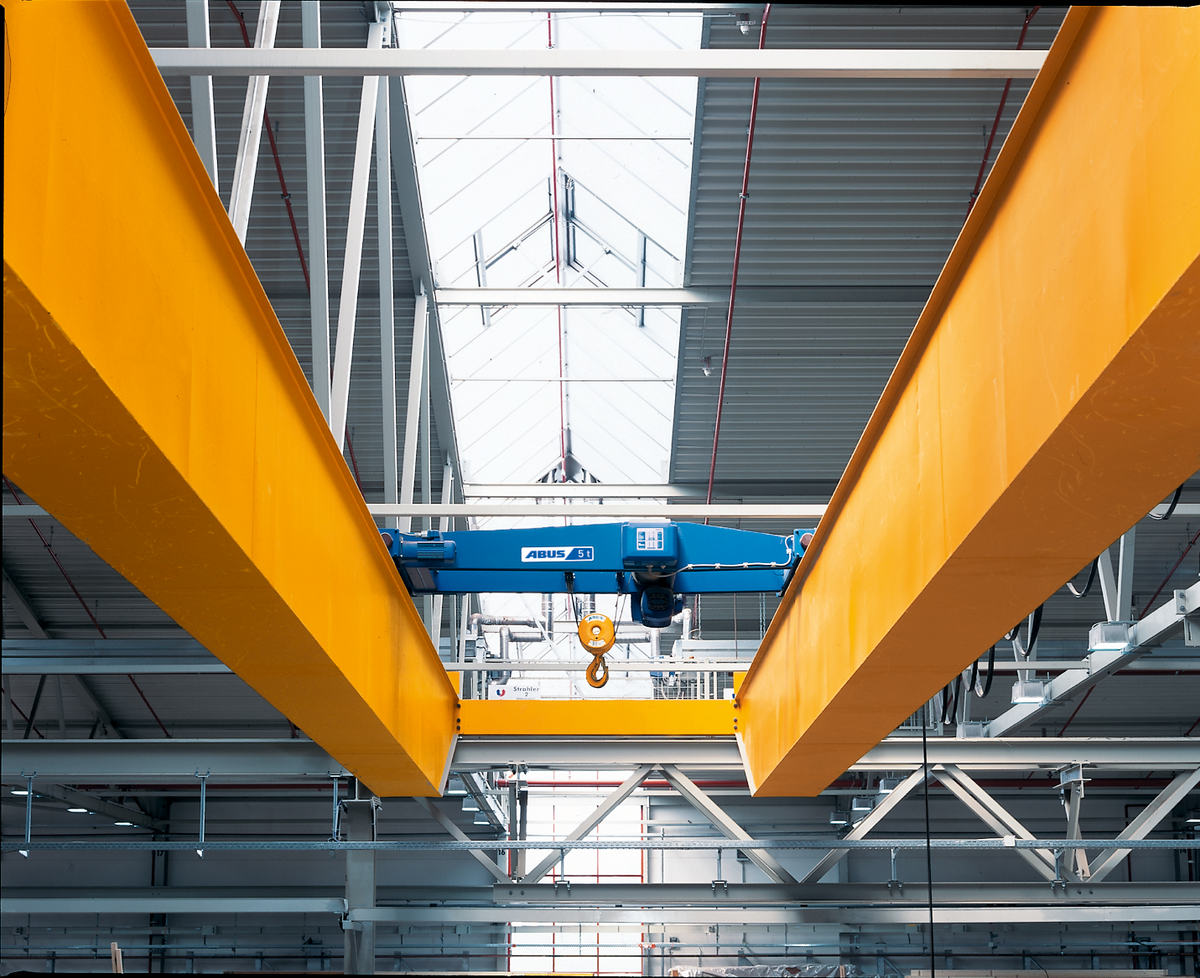

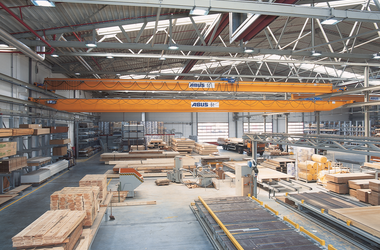

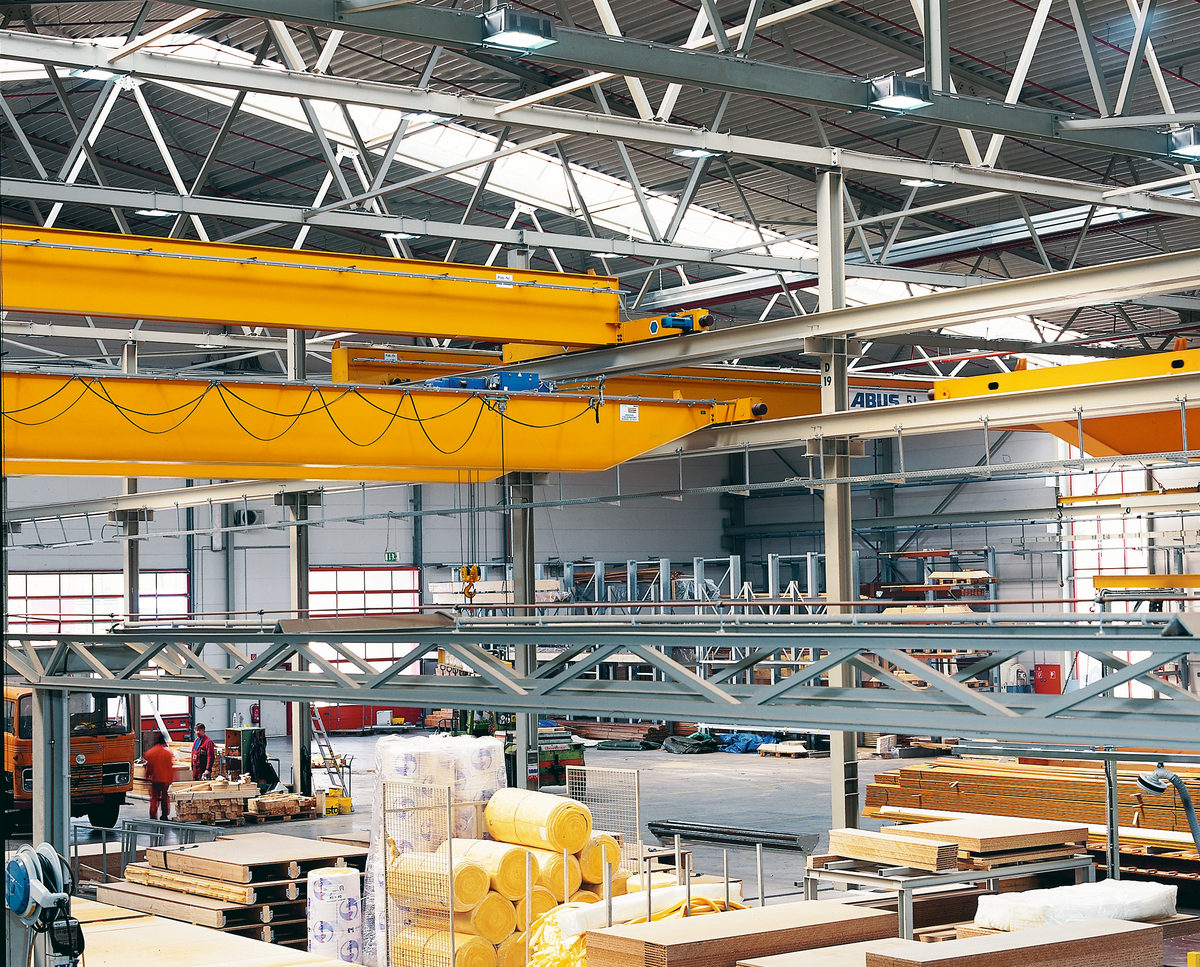

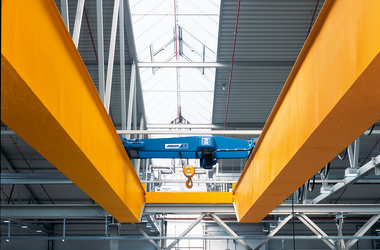

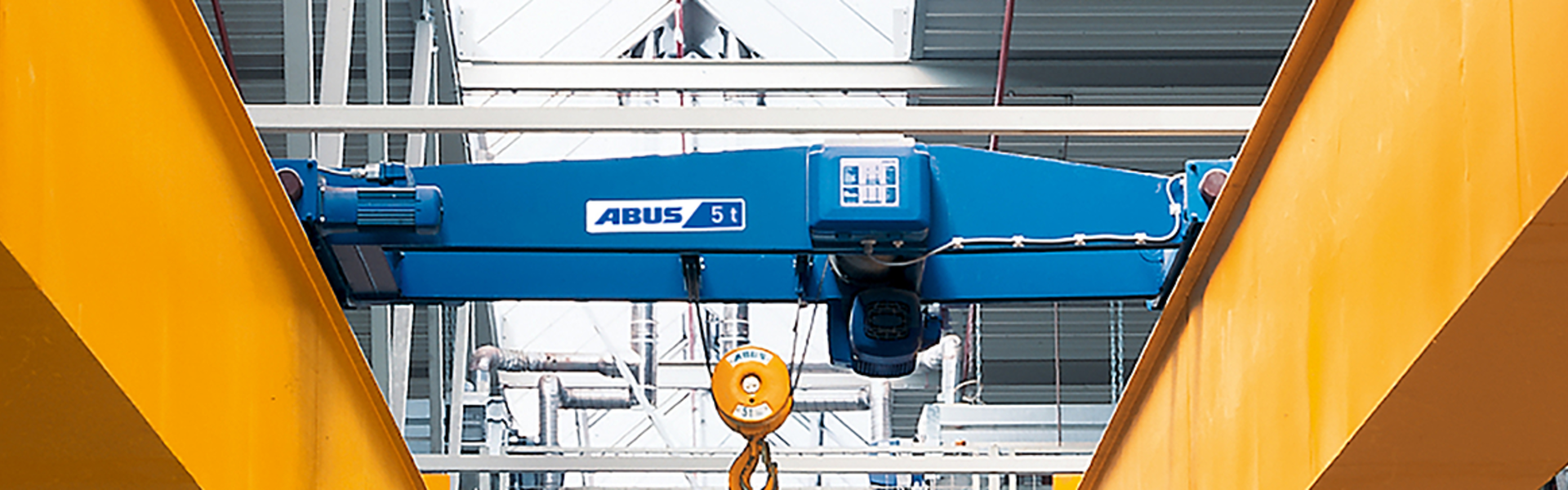

Close-up of ABUS double rail trolley type DQA on ABUS overhead travelling crane at Bienhaus company in Schlüchtern, Germany ABUS double rail trolleys type DQA on ABUS overhead travelling cranes in the company Bienhaus in Schlüchtern ABUS double rail trolley type DQA on ABUS overhead travelling crane in the company Bienhaus in Schlüchtern Close-ups of ABUS double rail trolley type DA on ABUS double girder overhead travelling crane at Eko in Eisenhüttenstadt, Germany

TYPE DQA – ULTRA LOW HEADROOM CRAB UNIT

The crab unit type DQA is characterised by an ultra-low headroom. This wire rope hoist design with a SWL of up to 40 t adapts to the building contours, even if there is very little clearance above it. The rope drum axis is aligned in the direction of cross travel. The articulated end carriage joints ensure positive contact of all four wheels with the track. The hoist trolley features two direct drive cross travel motors.

RELATED PRODCUTS

Figure ABUS monorail trolley type E
Type E – monorail hoist
16 t
Figure ABUS bottom flange trolley type U
Type U – monorail hoist with twin trolleys
25 t
Seitenlaufkatze Bauart S
Type S – side-mounted hoist
10 t
Figure ABUS double rail trolley type D
Type D – standard crab unit
63 t
Figure ABUS double rail trolley type DA
Type DA - low headroom crab unit
40 t
Figure ABUS double-rail trolley type Z with twin hoisting gear
Type Z – twin barrel crab unit
120 t

Downloads

ABUS Electric wire rope hoists
ABUS Electric wire rope hoists
Download PDF (4.79 MB)
ABUS hook block scale
ABUS hook block scale
Download PDF (349.03 KB)
This product in action

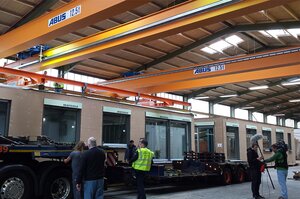

Double-girder traveling cranes working in tandem operation to transport a SmartHouse
Prefab homes on the road – SmartHouse, a manufacturer of modular houses, uses ABUS double girder cranes
See our solution

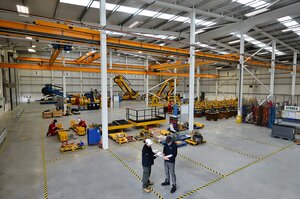

4 ABUS overhead travelling cranes part of the investment of the company Subsea Innovation
