Mounting the reinforced concrete binders or wooden binders using tie bracket with through-bolt


Would you like to mount a suspended rail system directly underneath your building girders which cannot be clamped?

Using ABUS binder brackets, suspended rail systems can be fastened directly underneath your supporting structure. Here the binders are drilled through on the side - it is not necessary to have access to the assembly area from above.

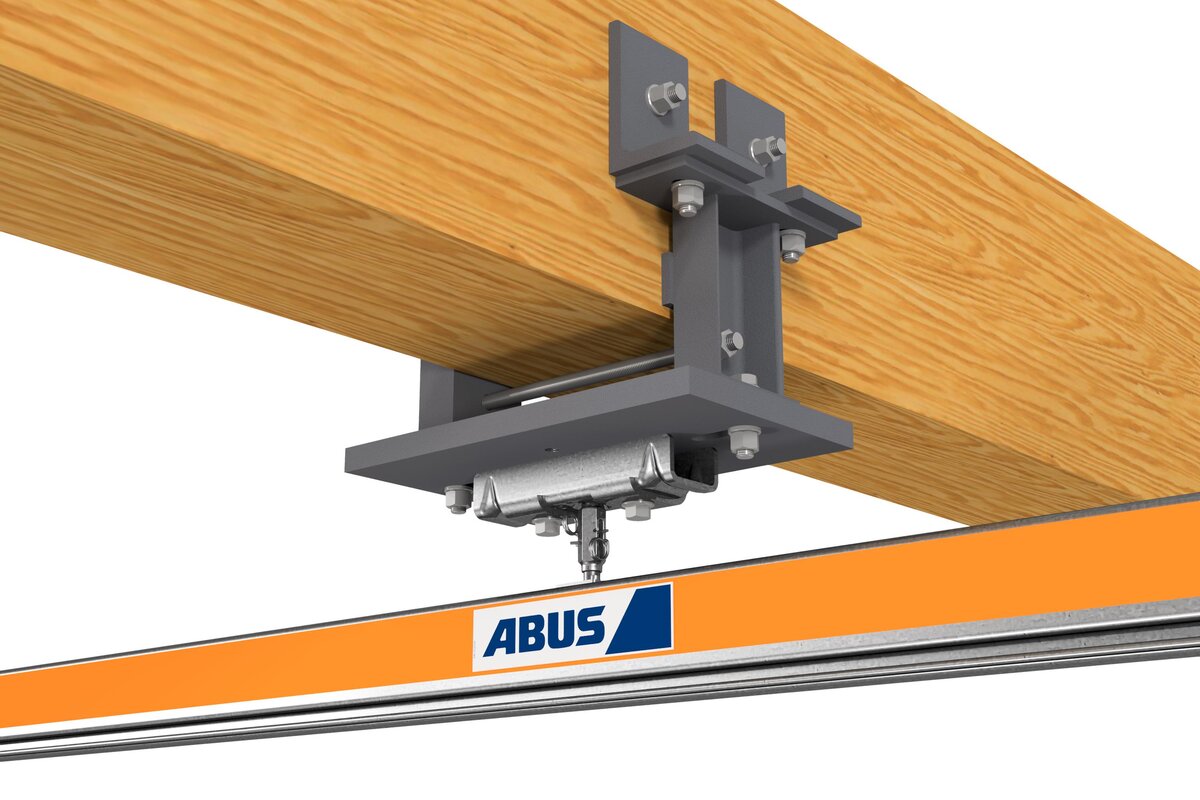

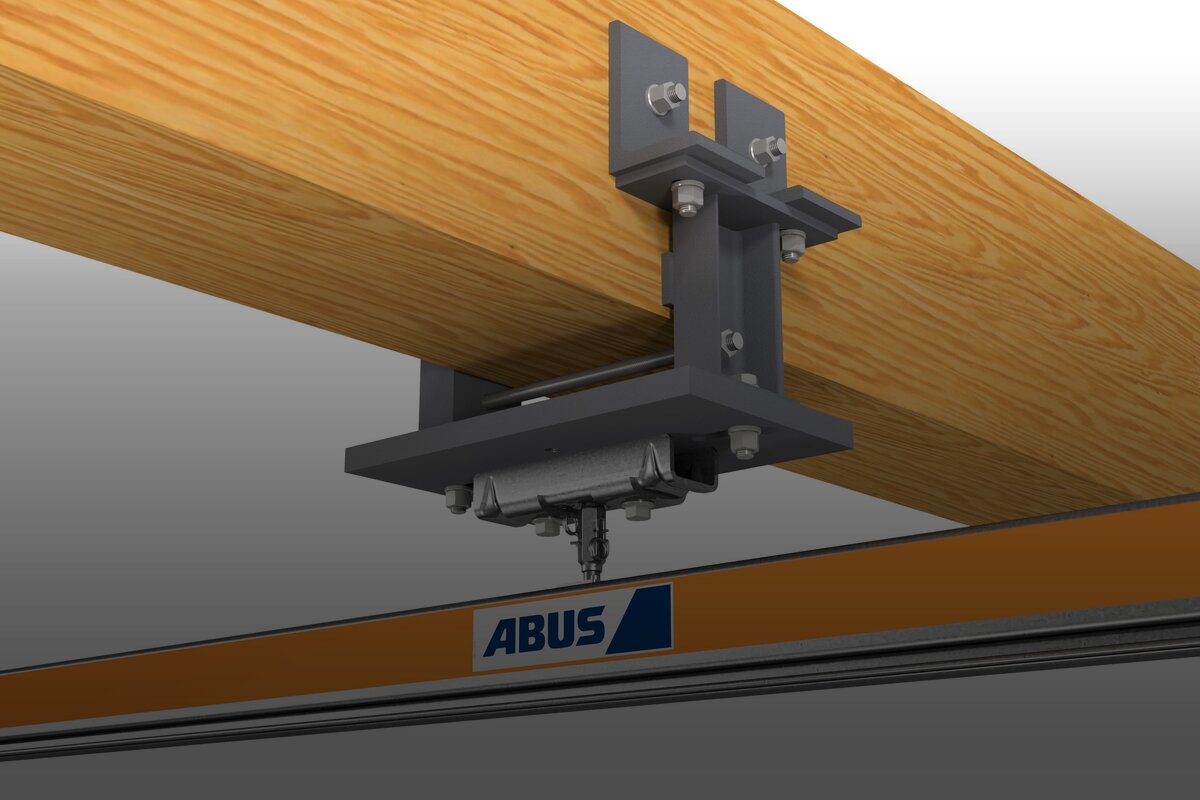

The binder brackets can be used for reinforced concrete binders and wooden binders with rectangular profiles. These brackets can also be used for BI binders.

Screw fastening of the suspension to the truss bracket

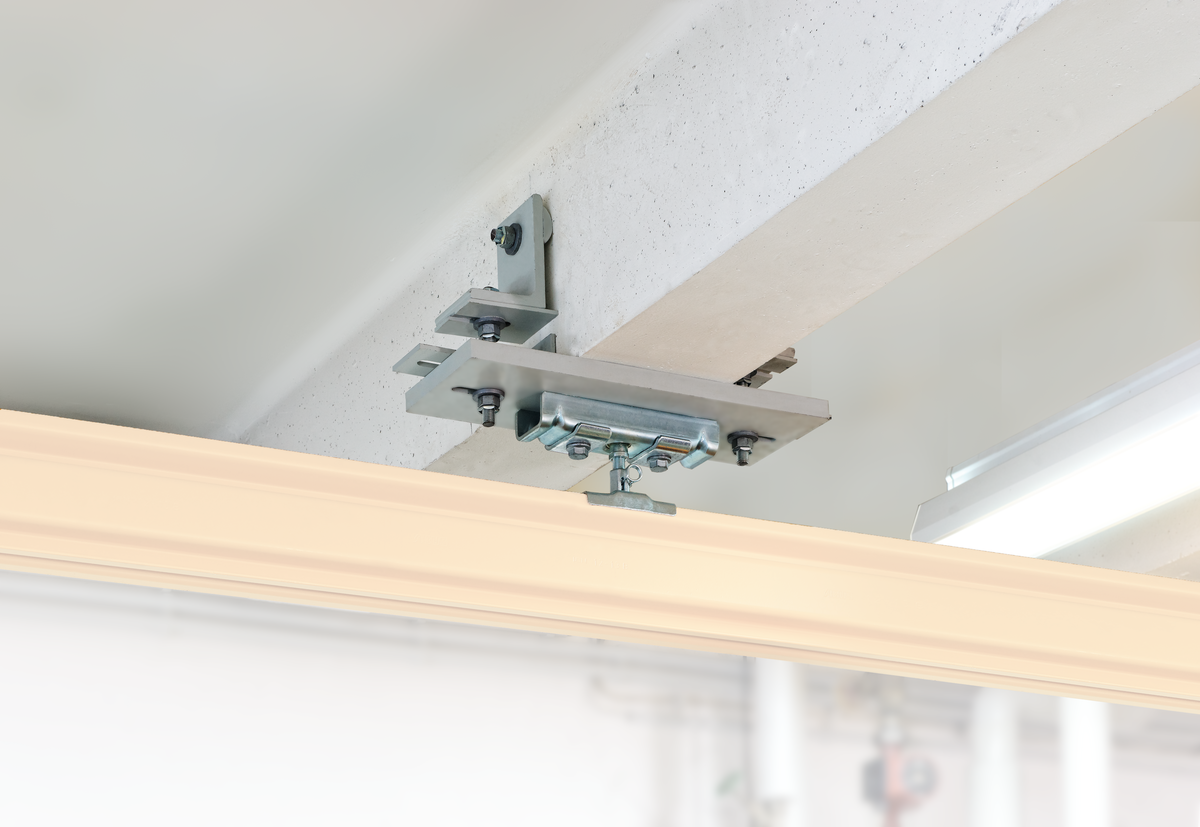

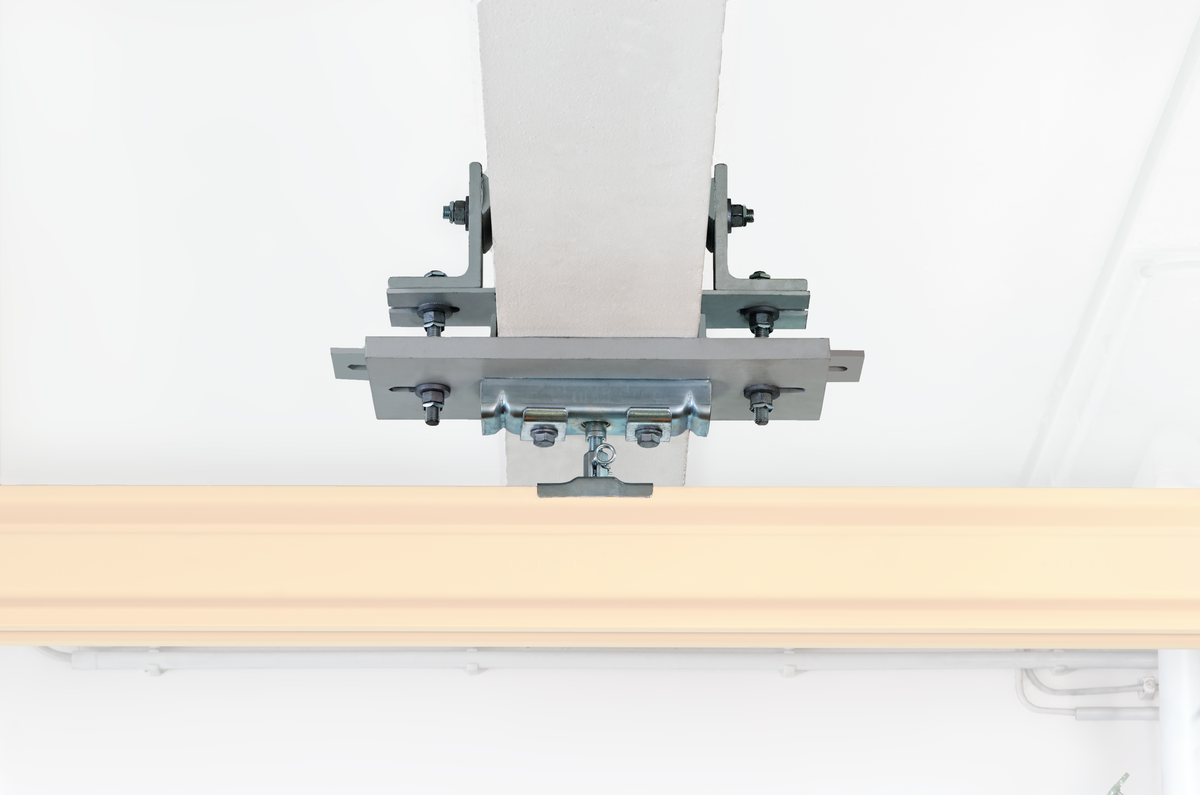

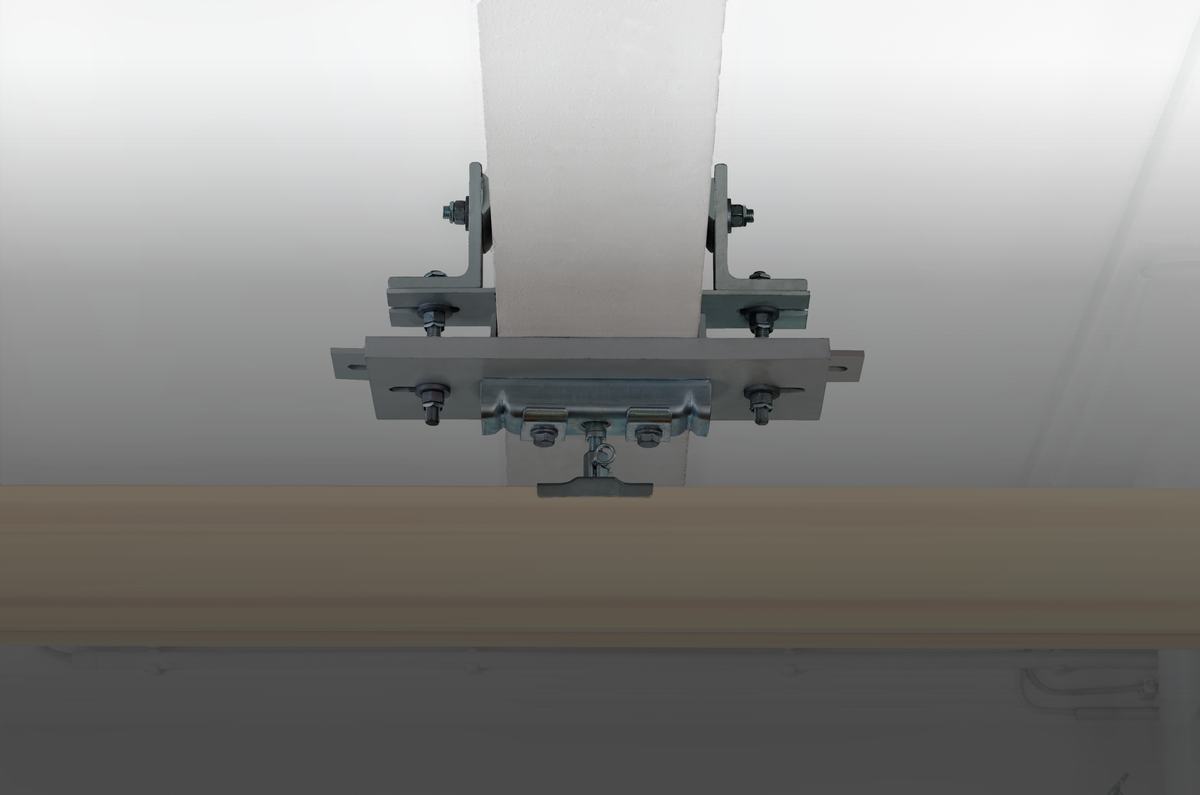

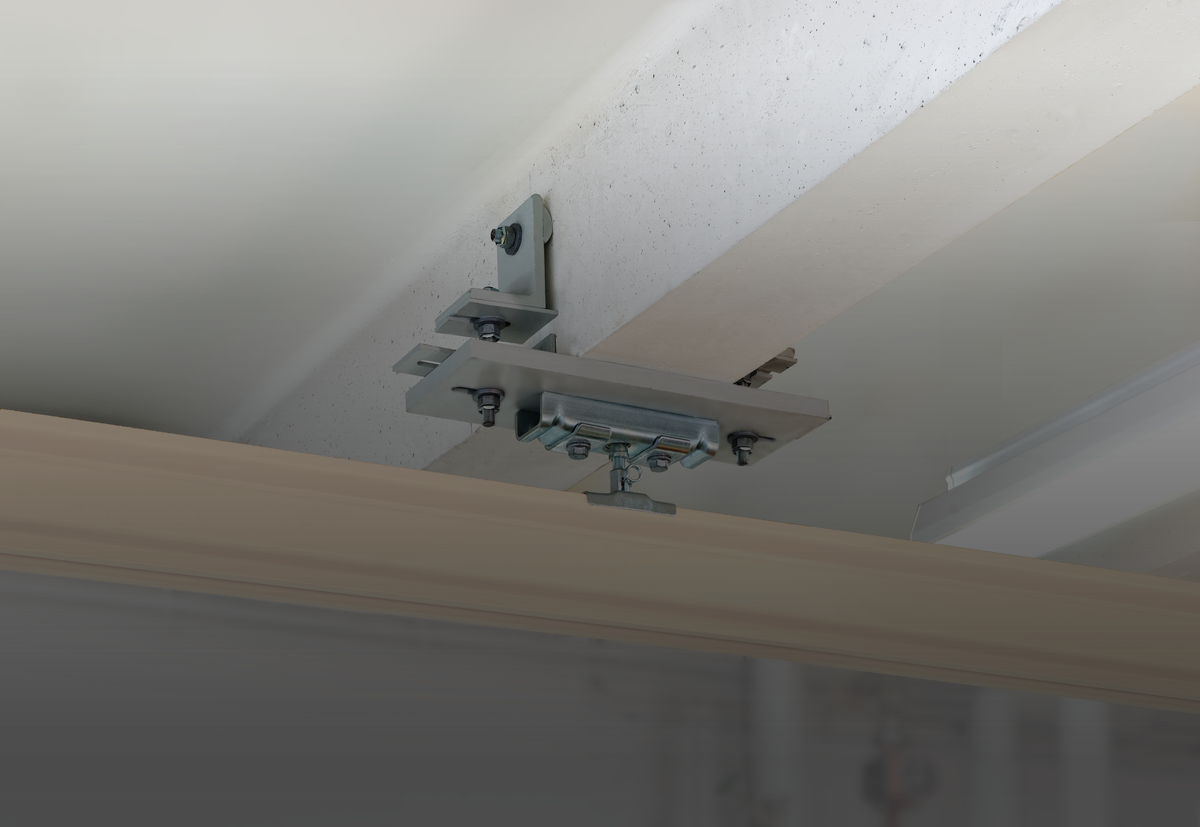

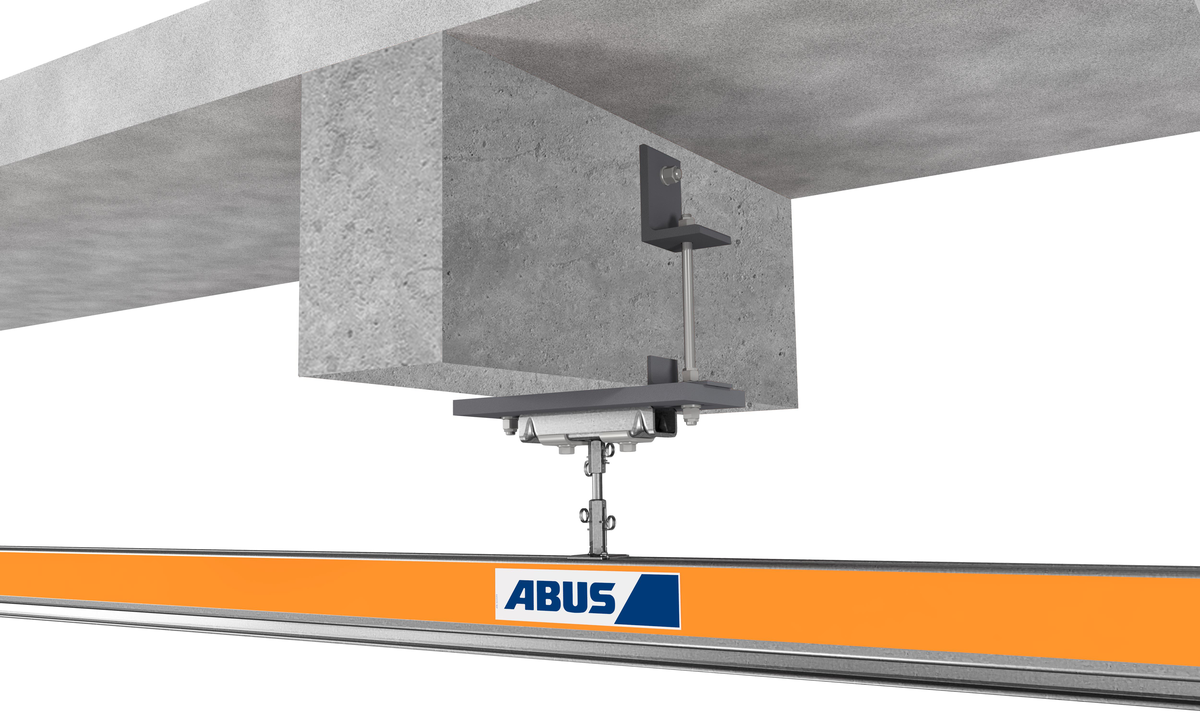

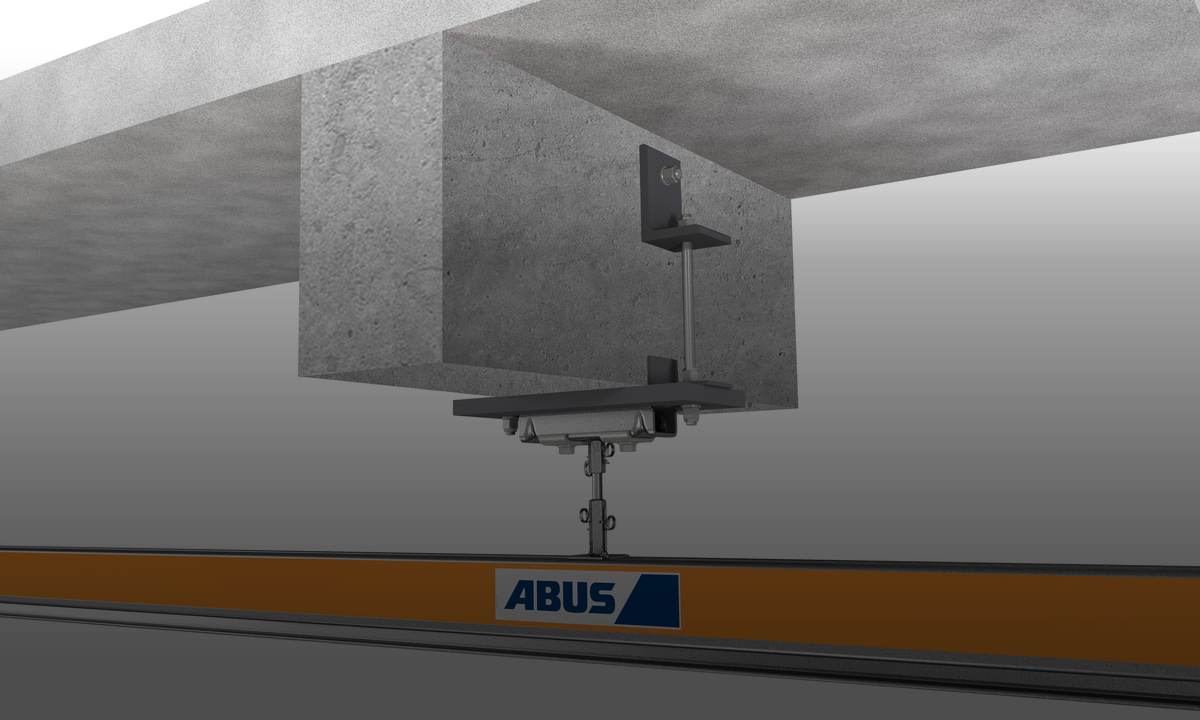

Reinforced concrete binder - PI version

Screw fastening for the suspension on the binder bracket
Screw fastening of the suspension to the truss bracket

Reinforced concrete binder - PI version

Screw fastening for the suspension on the binder bracket
